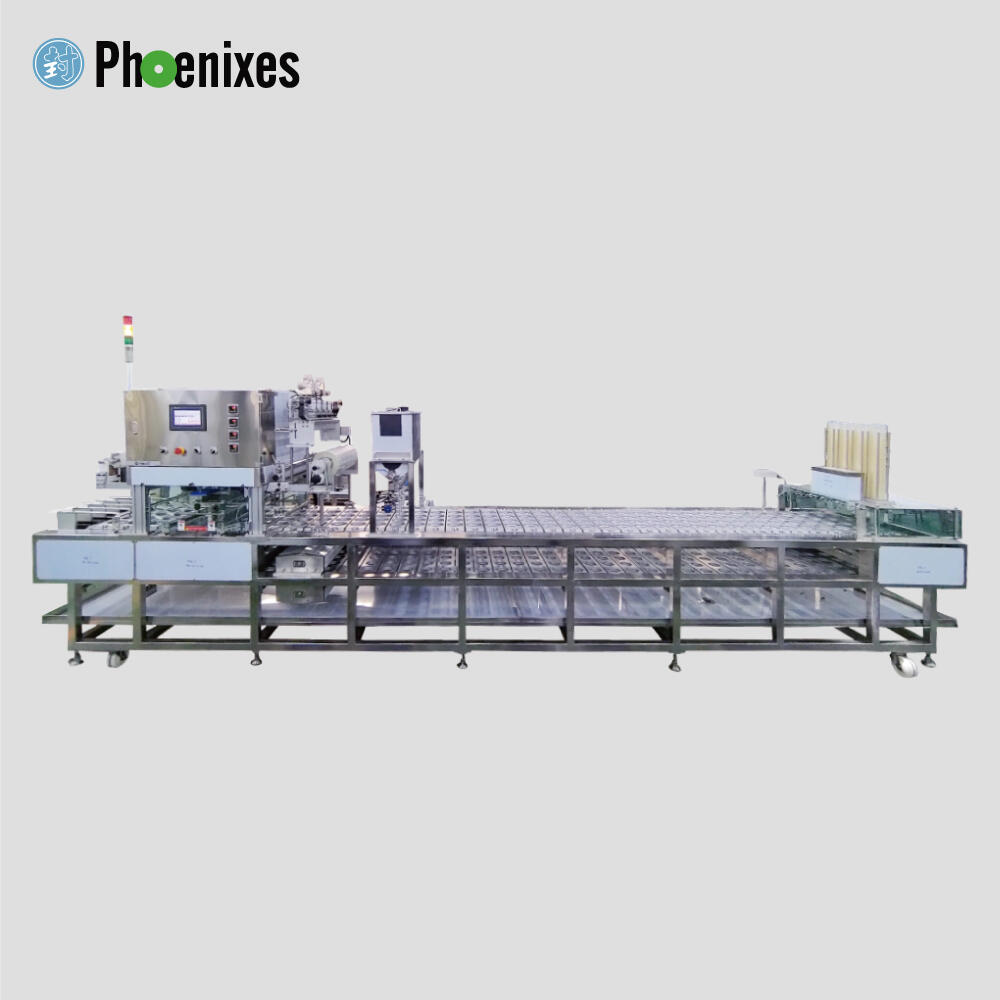

Automatic Conveyor Container Sealing Line
PH-22/66 is a configurable automatic conveyor line for filling and sealing cups, tubs, meal boxes and other food containers. Standard models run at up to 15 cut-and-seal cycles per minute. With multi-lane molds, reference output ranges from 900 to 7,200 containers per hour, depending on the selected model, container and line layout.
- Seven listed PH-22 and PH-66 configurations for different container sizes and lane counts.
- Three-phase 220/380/415/480 V; stainless-steel frame, IP65 protection and PLC touch-screen control.
- Options include container denesting, filling, date coding, MAP gas flushing, precut film, UV, mold washing and capping.
- CE and ISO 9001 manufacturing baseline.
For a reliable proposal, provide container samples or drawings, material, food product, target hourly output, sealing film and the upstream/downstream equipment to be connected.

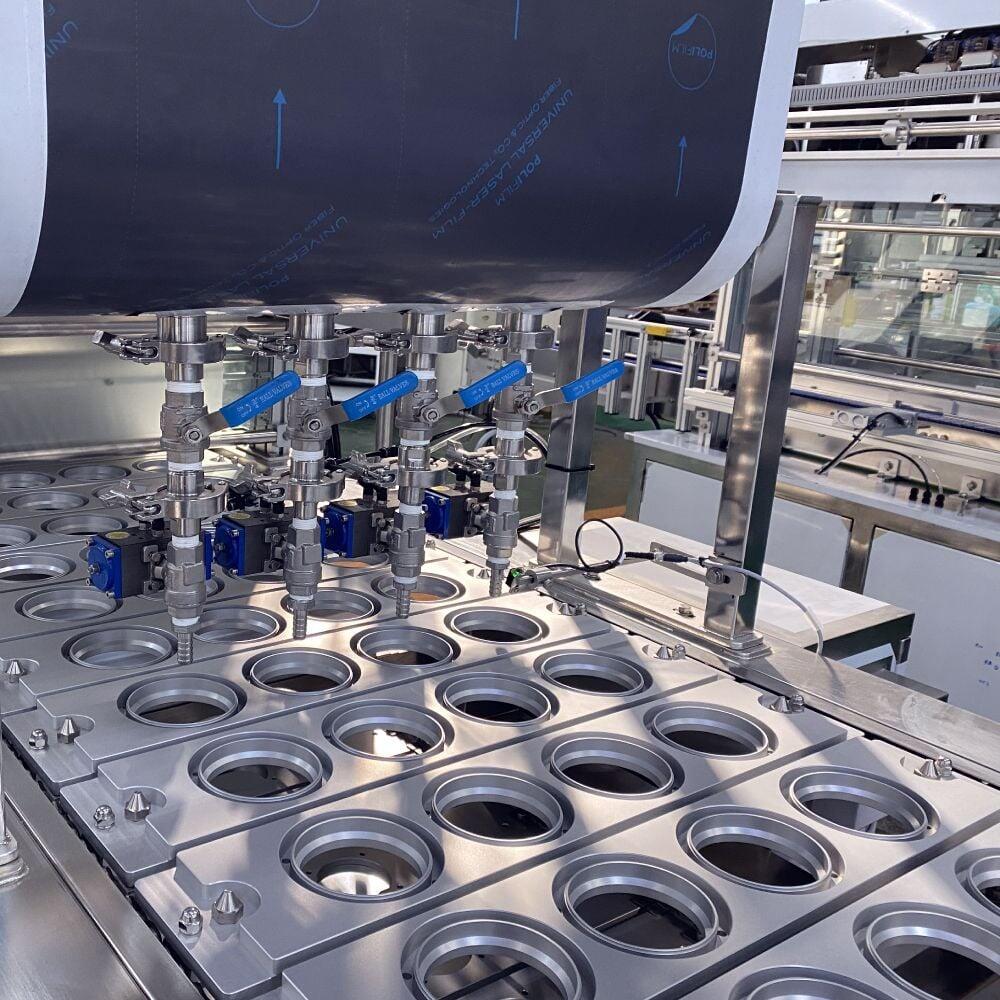

Configurable conveyor sealing line
Build the line around your container and required output
This series is intended for food factories, central kitchens and packing operations that need a continuous container-sealing process. Choose the frame width, mold lanes and upstream or downstream modules after confirming the actual container and product.
Typical applications
- Cups, bowls, tubs, meal boxes and microwave or frozen-food containers.
- Water, beverages, yogurt, pudding, tofu, prepared meals and other food products.
- Food factories, central kitchens, contract packers and production-line integration.
Line and control features
- PLC touch screen with fault display and remote-control capability.

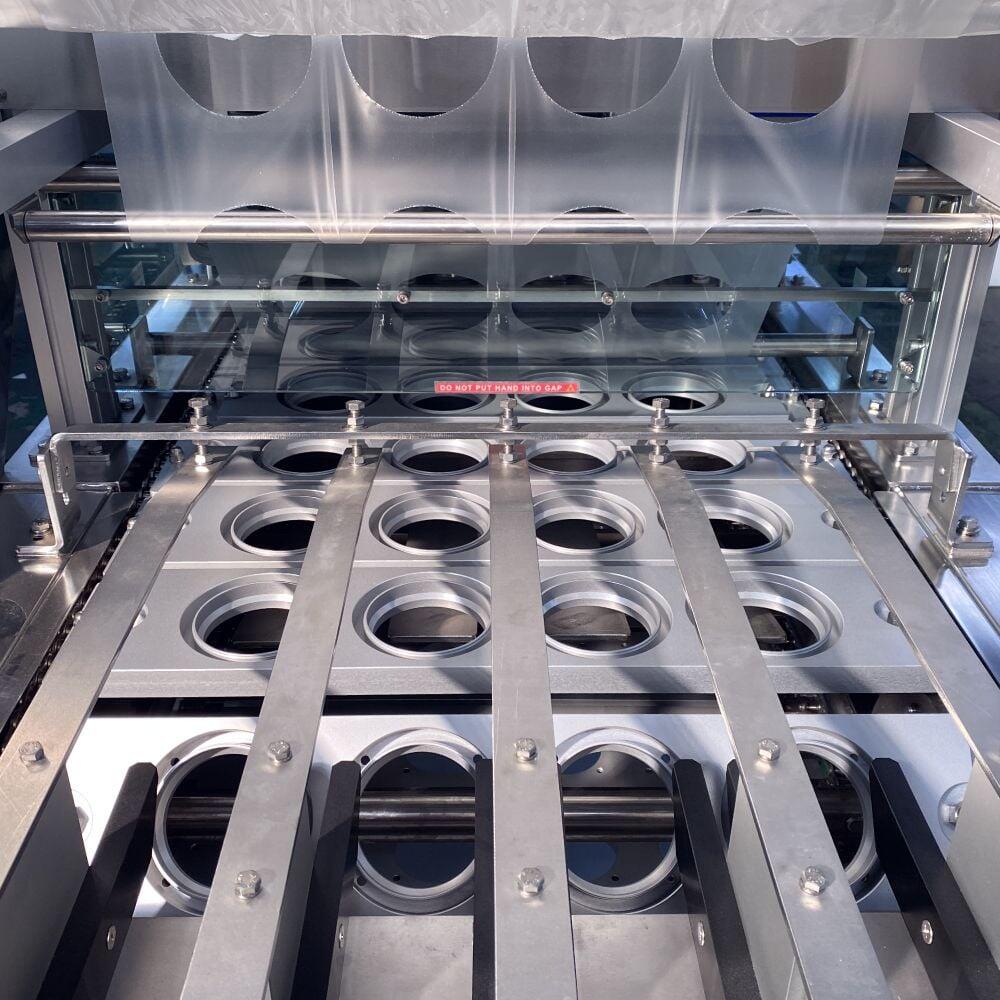

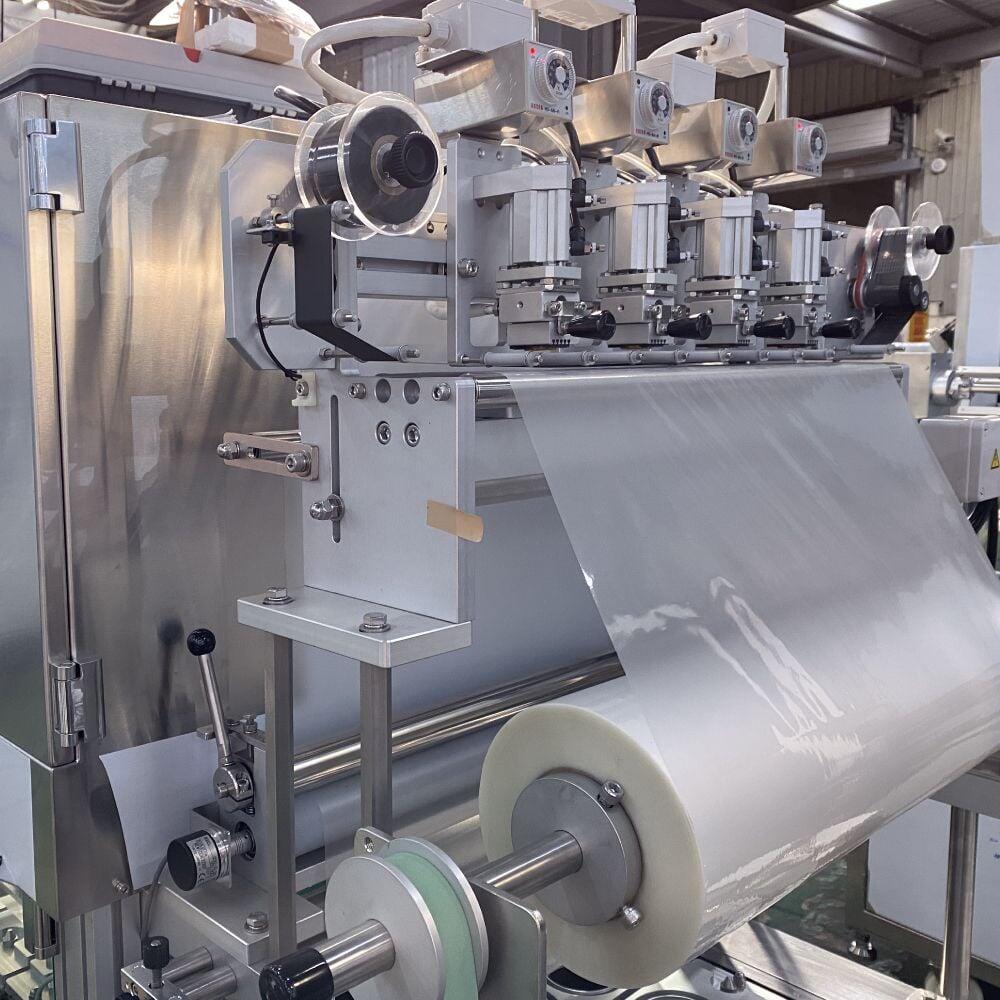

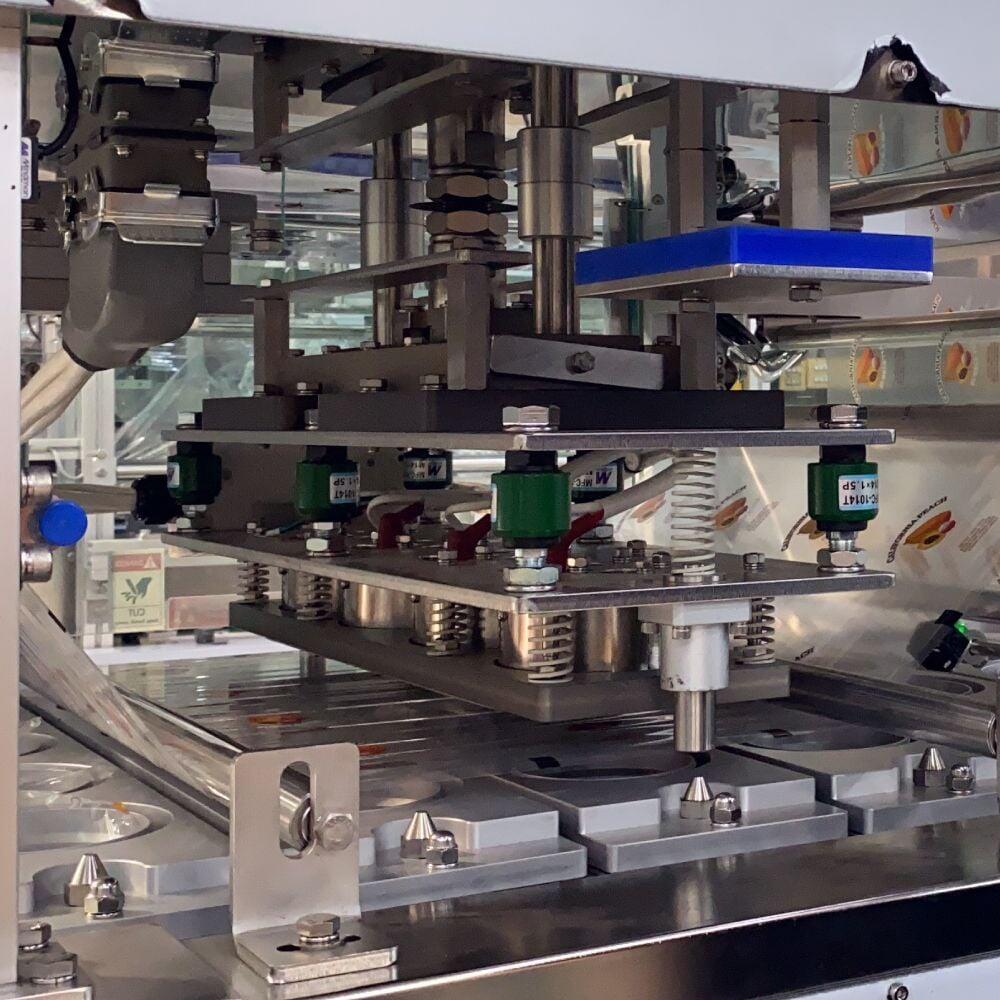

- Stainless-steel frame, anodized aluminum molds, Teflon-coated heater and film rewinding.
- Safety protection and emergency stop; mold lanes and equipment layout can be customized.
Optional modules

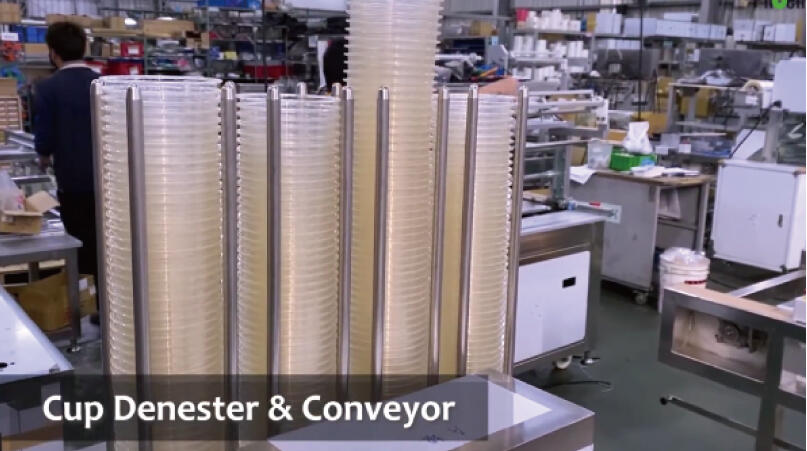

- Automatic container denester / feeding

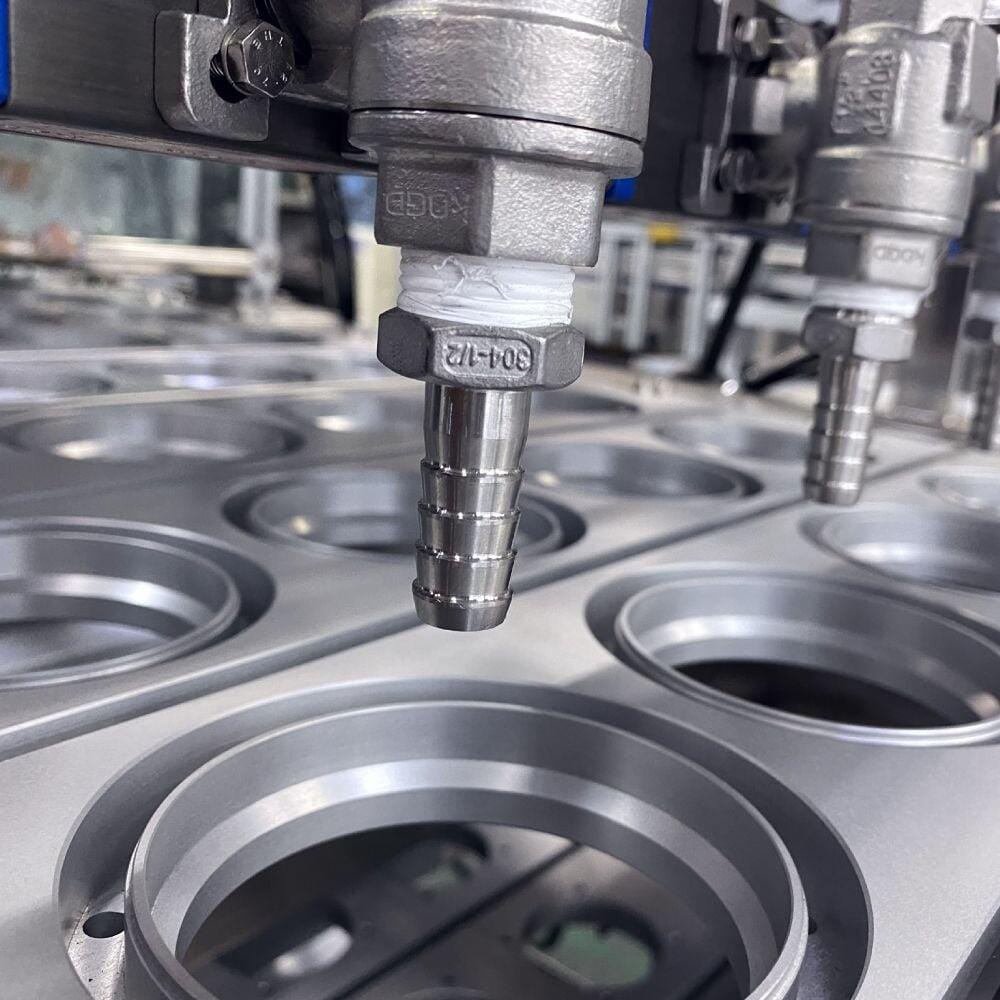

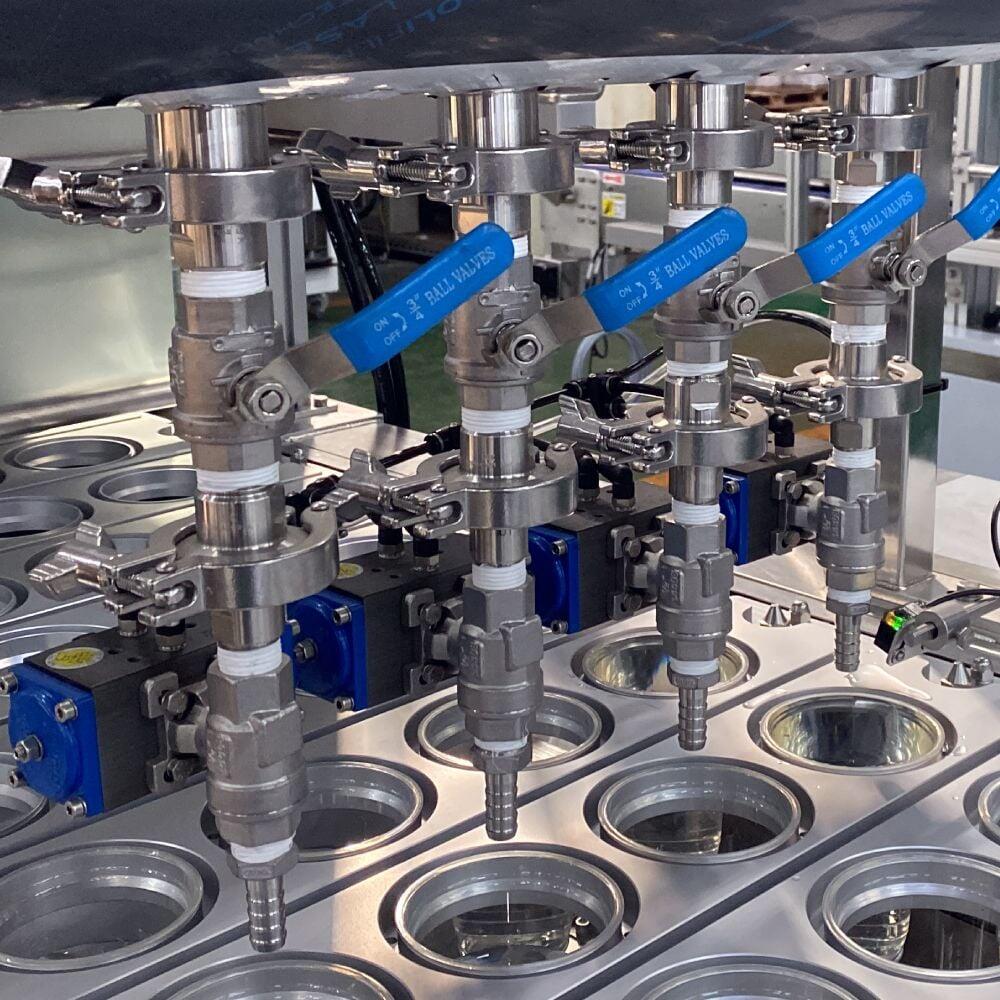

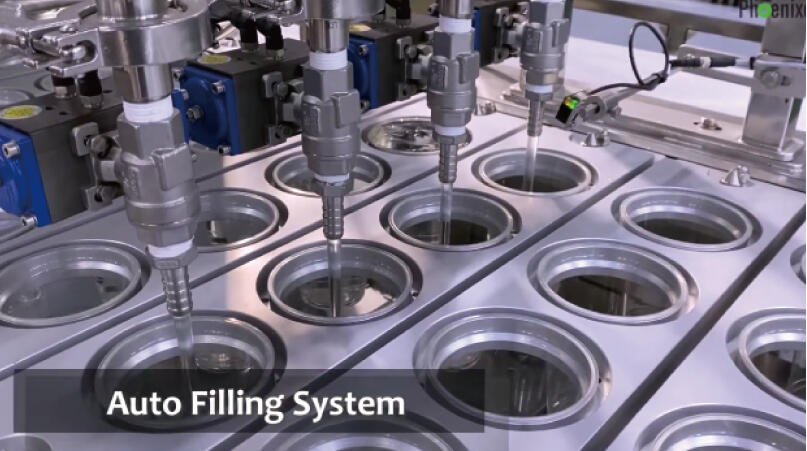

- Liquid or semi-solid filling

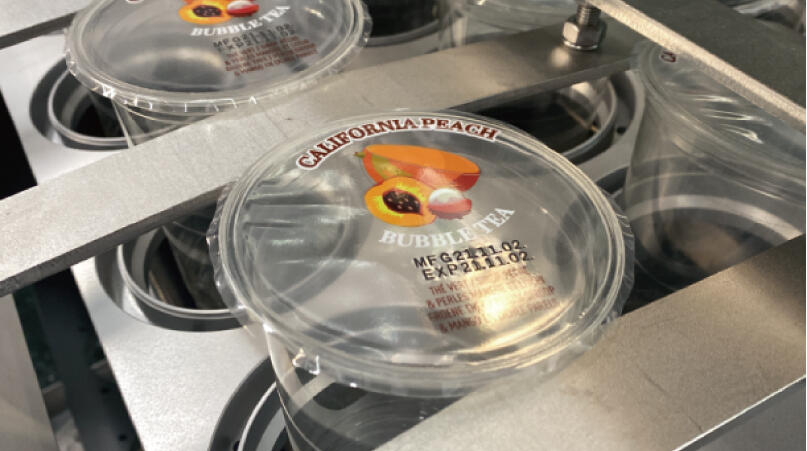

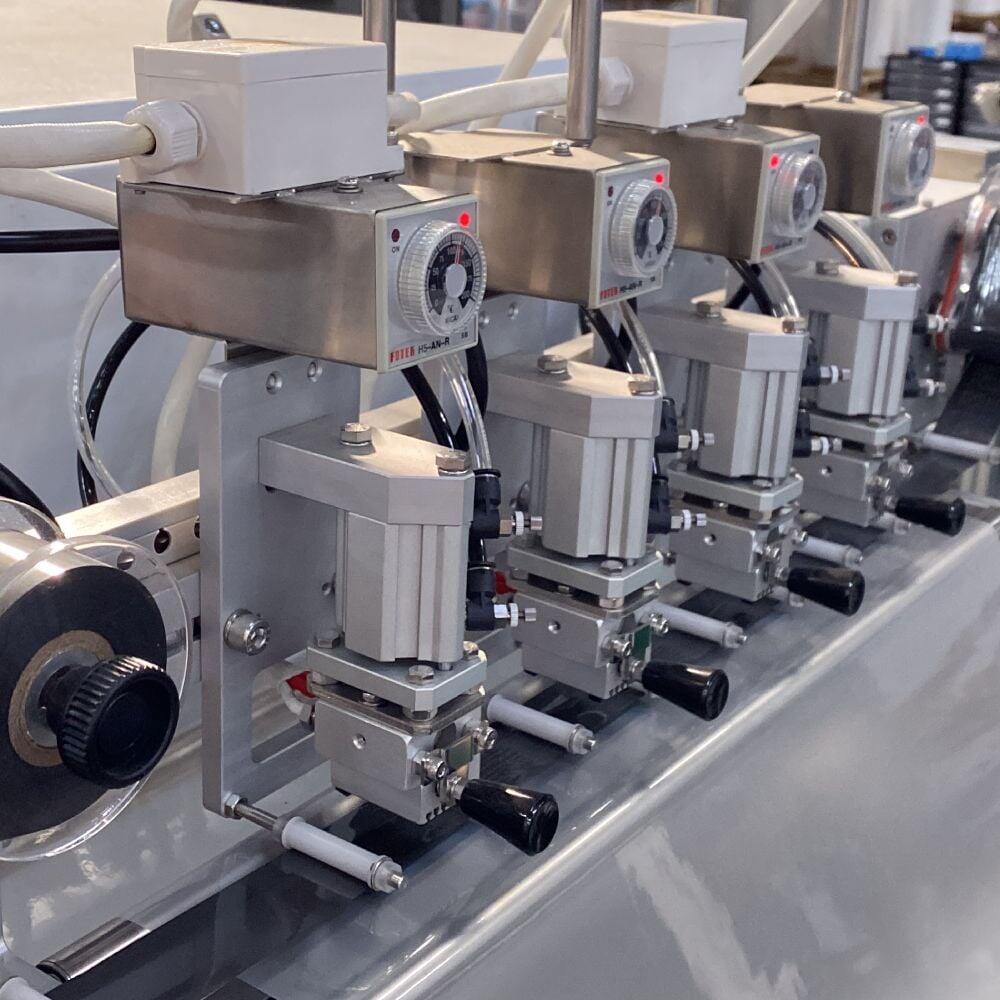

- Date, text and code printer
- MAP gas flushing
- Precut film
- UV sterilizer
- Mold washing
- Capping
Configuration reference
Standard series speed is up to 15 cut-and-seal cycles per minute. Hourly output is created by the number of mold lanes, so it must not be read as 15–60 machine cycles per minute.
| Model | Machine dimensions (L × W × H) | Reference output | Maximum container size |
|---|---|---|---|
| PH-22S1 | 2,000 × 660 × 1,700 mm | 900–1,800 containers/hour | 220 × 170 × 100 mm |
| PH-22M1 | 2,000 × 930 × 1,700 mm | 900–5,400 containers/hour | 440 × 220 × 100 mm |
| PH-22L1 | 2,000 × 1,200 × 1,700 mm | 900–7,200 containers/hour | 740 × 220 × 100 mm |
| PH-66SS1 | 2,500 × 660 × 1,700 mm | 900–1,800 containers/hour | 170 × 220 × 100 mm |
| PH-66S1 | 2,500 × 850 × 1,700 mm | 900–3,600 containers/hour | 360 × 220 × 100 mm |
| PH-66M2 | 2,500 × 1,040 × 1,700 mm | 1,800–7,200 containers/hour | 260 × 220 × 100 mm |
| PH-66L2 | 2,500 × 1,230 × 1,700 mm | 1,800–7,200 containers/hour | 355 × 220 × 100 mm |
For a reliable proposal, provide container samples or drawings, material, food product, target hourly output, sealing film and the upstream/downstream equipment to be connected.
