Sachet Packaging Machines
A practical packaging solution from pilot runs to higher-output production
Phoenixes sauce and liquid sachet packaging machines combine metered filling, bag forming, three-side sealing and cutting in one process. Select the tabletop PH-2AS or the higher-output PH-2A3 according to product properties, fill volume, target output, available space and air-supply conditions.
Key advantages
- Integrated packaging process: Metered filling, film forming, three-side sealing and cutting are completed continuously in one machine.
- Two production levels: PH-2AS is suited to trials, small batches and limited spaces; PH-2A3 supports higher-output continuous packing.
- Application-based selection: The right model is evaluated according to viscosity, flowability, fill volume, packaging film and site air supply.
- Optional configurations: Date or batch coding, mixing, double-wall hoppers and automatic feeding can be evaluated by model and product.
Suitable products and applications
- Food sauces: Soy paste, dipping sauces, chili sauce, satay sauce, ketchup and other flowable sauces.
- Liquid products: Honey, fructose syrup, vinegar, edible oil and other flowable liquids.
- Typical users: Food factories, central kitchens, contract packers, product development, pilot runs and small-batch production.
- Products requiring tests: High-viscosity, settling, separating or particle-containing products must be sample-tested before machine selection.
Uses a peristaltic pump and requires no external air compressor. Filling range: 10–150 c.c.; approximately 500 packs/hour based on a 30 g test. Recommended for particle-free, flowable liquids, trials and small batches.
Filling range: 10–200 c.c.; approximately 1,200 packs/hour based on a 20 c.c. test. An external air compressor is required. Suitable for food factories and higher-output production; fine-particle products require testing.
Before selecting a machine: Provide a product sample, fill volume per pack, target output and intended packaging film. Actual output varies with the product, fill volume, film and operating conditions.
Automatic Sauce and Liquid Sachet Packaging Machine
PH-2A3 is a floor-standing automatic sachet packaging machine for sauces and liquids. It integrates piston dosing, film forming, three-side heat sealing and cutting in one cycle. Filling range is 10–200 c.c. with ±3% accuracy; output is up to 1,200 packs/hour at 20 c.c. A 12 L hopper, LED controls, count display, temperature control and fault detection support routine production. An external air compressor is required. High-viscosity, settling or fine-particle products should be confirmed by sample testing.
- 10–200 c.c. — Filling range
- ±3% — Filling accuracy
- 1,200 packs/hour — At 20 c.c.
- 12 L — Hopper capacity

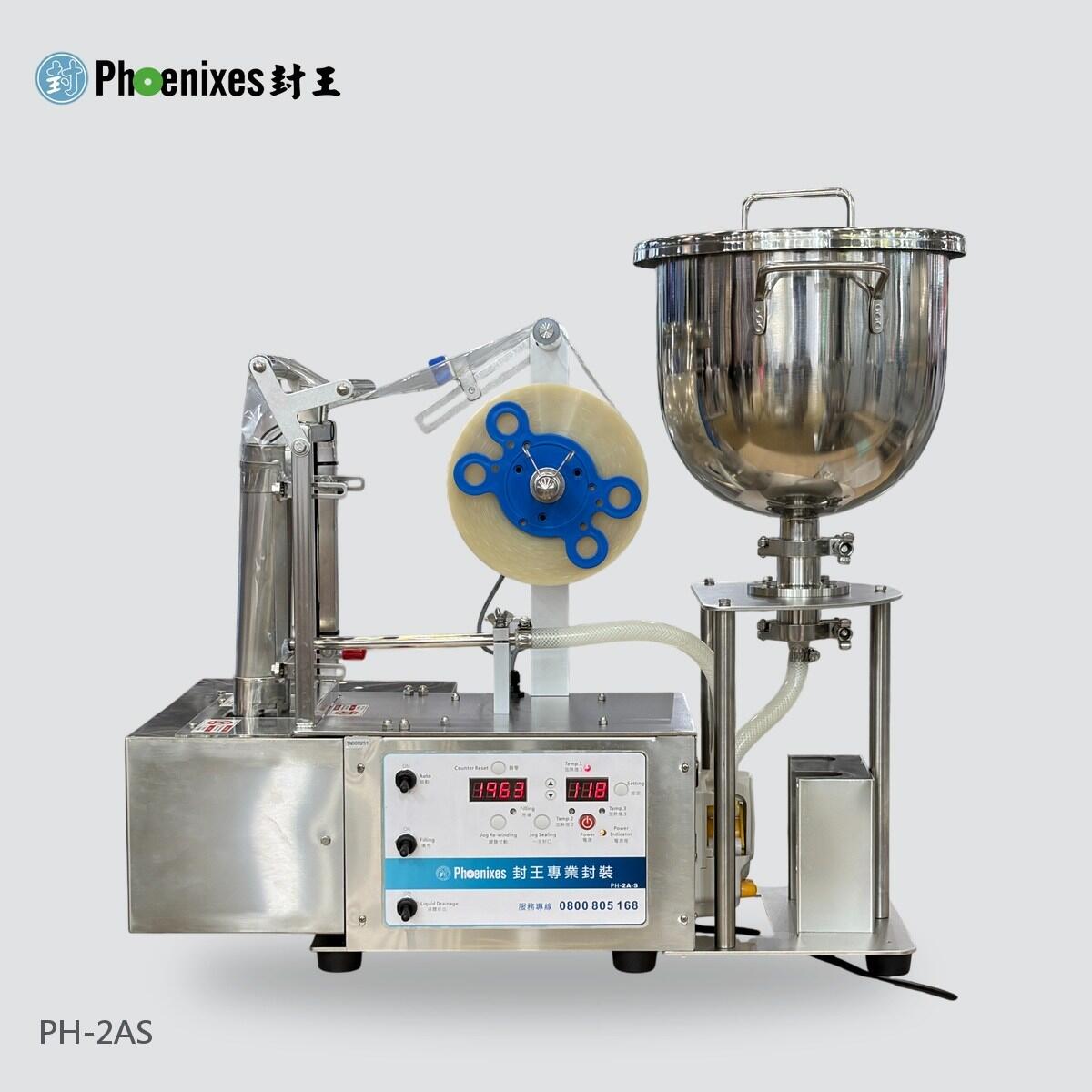

Tabletop Sachet Packaging Machine
The Phoenixes PH-2AS tabletop sauce sachet packaging machine uses a peristaltic pump and requires no external air compressor. Its compact frame combines metered filling, roll-film forming, three-side sealing, and cutting.
- Filling range: 10–150 cc
- Reference capacity: approx. 500 packs/hr based on 30 g per pack
- Standard film widths: 130 mm / 180 mm stock sauce sachet film
- For pilot runs and small-batch packaging of flowable, non-particulate liquids
Made in Taiwan. Testing with the actual product and film is recommended.
