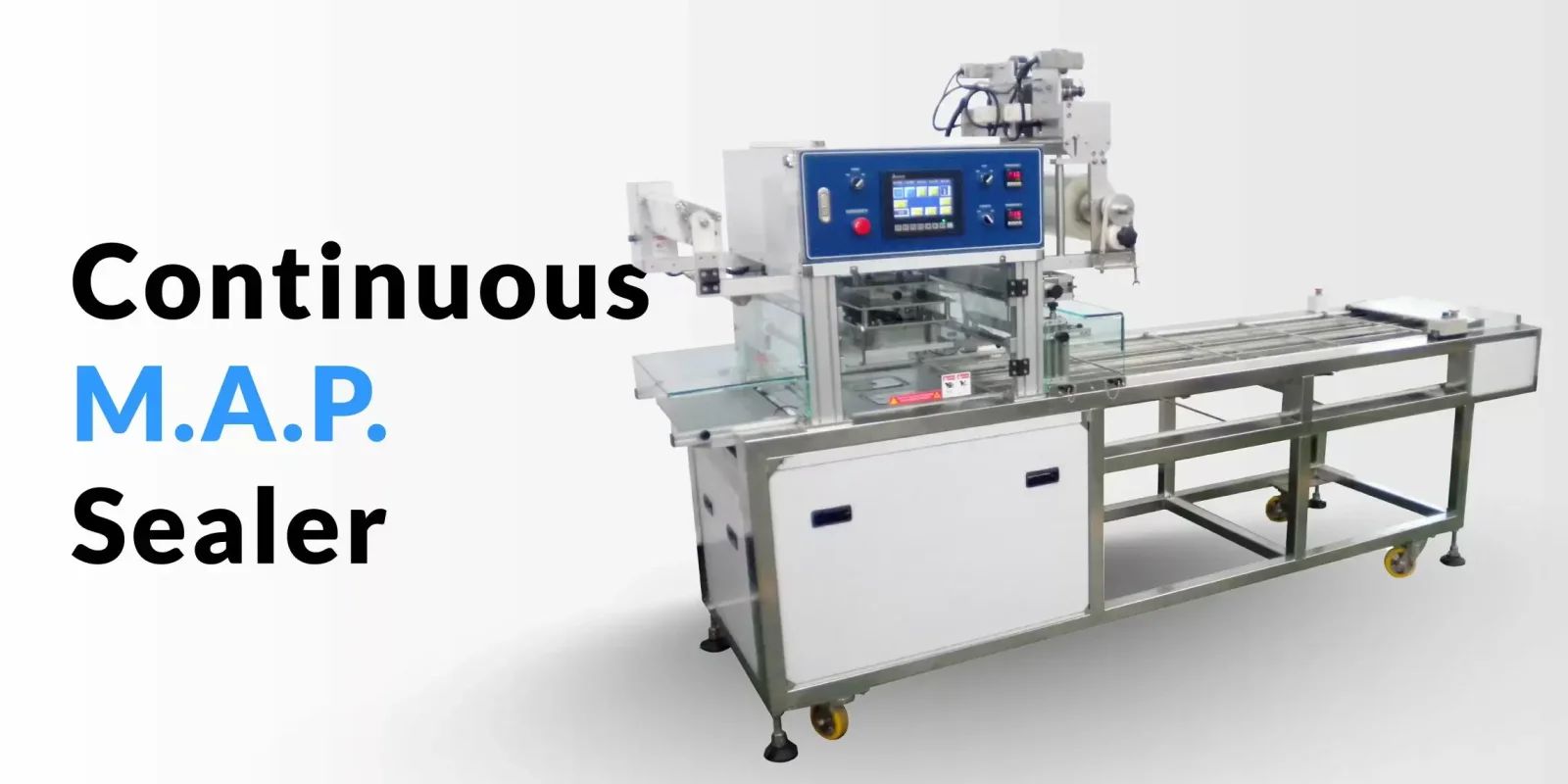

Continuous Automatic MAP Tray Sealing Line

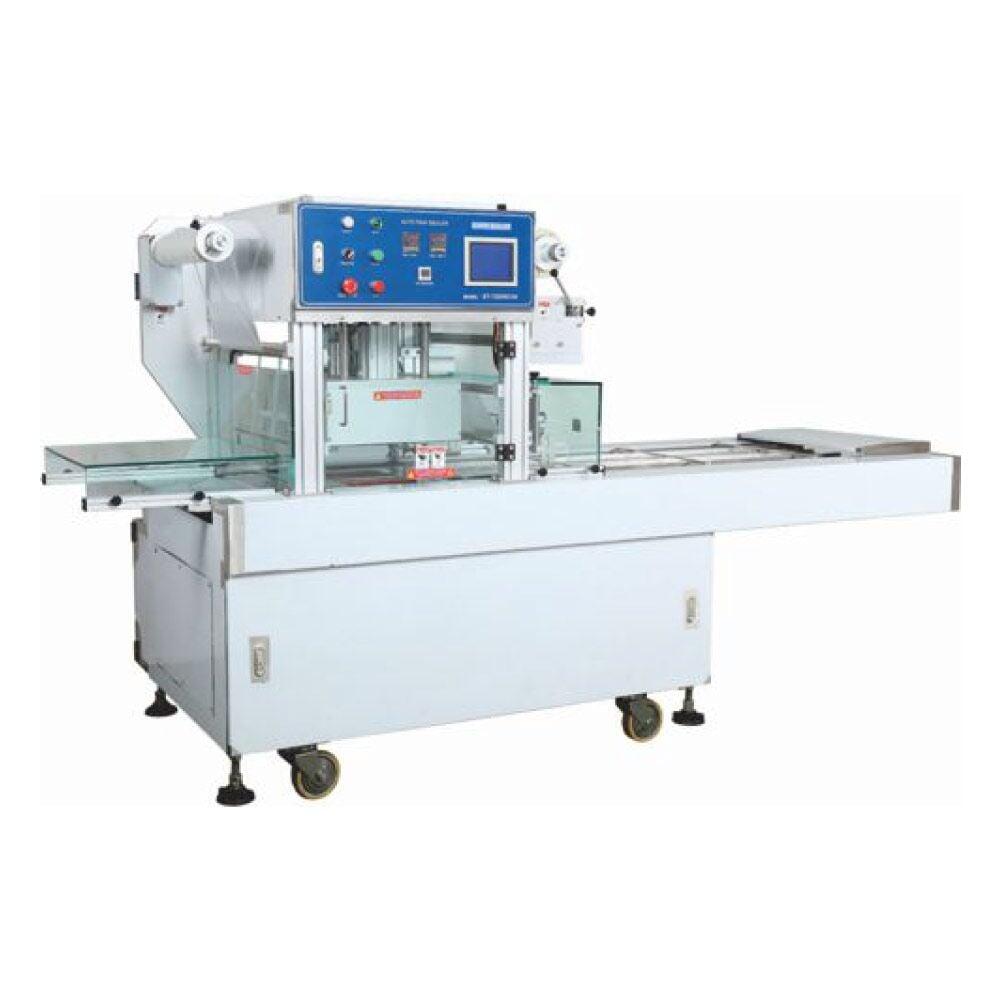

PH-55 is a continuous push-rod automatic sealing line for meal boxes, fresh food, meat, seafood, frozen food and other food containers. Interchangeable molds support three configurations: MAP gas flushing and sealing, vacuum plus gas flushing and sealing, or vacuum skin packaging. The standard maximum sealing area is 400 × 320 mm, with custom sizes available. The line uses PLC touch-screen control, an IP65 stainless-steel structure and supports up to four sealing lanes.
- Three packaging modes on one configurable platform.
- CE safety and ISO 9001 quality baseline.
- Compatible with printed or unprinted plastic, paper and aluminum sealing films.
- Options include container denesting, filling, date coding, precut film, UV sterilization and capping.
For selection, provide container samples or drawings, material, food product, sealing film, required packaging mode, target hourly output and the upstream/downstream equipment to be connected. Final performance and configuration require sample and line review.
Continuous MAP and vacuum sealing
Choose the packaging mode around the food and required shelf-life process
PH-55 is built for food factories, central kitchens and packing operations that need continuous container sealing. Interchangeable molds let the same production platform be configured for standard MAP, vacuum-assisted MAP or skin packaging after the container, film and product have been tested.
Packaging modes
- MAP gas flushing + sealing: replaces the container atmosphere with the selected gas mixture before sealing.
- Vacuum + gas flushing + sealing: evacuates the container before gas flushing; the current PH-55 specification states residual oxygen below 0.1%.
- Vacuum + sealing: uses a suitable stretch film to create skin packaging around the food.
Typical production uses
- Meal boxes, prepared foods, fresh vegetables, meat and seafood.
- Frozen, chilled and microwave-ready foods.
- Food factories, central kitchens, contract packers and upstream supermarket or convenience-store production.
Line and sealing features
- PLC touch screen with fault display and remote-connectivity capability.
- Stainless-steel frame, anodized aluminum molds and Teflon-coated heater.
- Film rewinding for printed or unprinted plastic, paper or aluminum films.
- Multiple safety features and a configurable line layout.
Optional modules
- Automatic container denester
- Interchangeable molds
- Vacuum / skin-pack system
- Liquid or semi-solid filling
- Date, text and code printer
- Precut film feeder
- UV sterilizer
- Capping system
| Model | Machine Size (W x D x H mm) | Power | Capacity (pcs/hr) | Capacity with MAP (pcs/hr) | Max Container Size (L x W x H mm) |
|---|---|---|---|---|---|
| PH-55MS1GF | 1000 x 2000 x 1600 | 220V, 2600W | 600 | 450 | 400 x 140 x 100 |
| PH-55MS2GF | 220V, 2600W | 1200 | 900 | 185 x 140 x 100 | |
| PH-55MS3GF | 220V, 3000W | 1800 | 1350 | 110 x 140 x 100 | |
| PH-55MM1GF | 1000 x 2500 x 1600 | 220V, 2600W | 550 | 420 | 400 x 260 x 100 |
| PH-55MM2GF | 220V, 2600W | 1100 | 840 | 185 x 260 x 100 | |
| PH-55MM3GF | 220V, 3000W | 1650 | 1260 | 110 x 260 x 100 | |
| PH-55ML1GF | 1000 x 3000 x 1600 | 220V, 3000W | 500 | 400 | 400 x 320 x 100 |
| PH-55ML2GF | 220V, 3000W | 1000 | 800 | 185 x 320 x 100 | |
| PH-55ML3GF | 220V, 3600W | 1500 | 1200 | 110 x 320 x 100 | |
| PH-55LS2GF | 1200 x 2000 x 1600 | 220V, 3600W | 1200 | 900 | 285 x 140 x 100 |
| PH-55LS3GF | 220V, 3600W | 1800 | 1350 | 180 x 140 x 100 | |
| PH-55LS4GF | 220V, 3600W | 2400 | 1800 | 125 x 140 x 100 | |
| PH-55LM2GF | 1200 x 2500 x 1600 | 220V, 3000W | 1100 | 840 | 285 x 260 x 100 |
| PH-55LM3GF | 220V, 3600W | 1650 | 1260 | 180 x 260 x 100 | |
| PH-55LM4GF | 220V, 3600W | 2200 | 1680 | 125 x 260 x 100 | |
| PH-55LL2GF | 1200 x 3000 x 1600 | 220V, 3000W | 1000 | 800 | 285 x 320 x 100 |
| PH-55LL3GF | 220V, 3600W | 1500 | 1200 | 180 x 320 x 100 | |
| PH-55LL4GF | 220V, 3600W | 2000 | 1600 | 125 x 320 x 100 |
