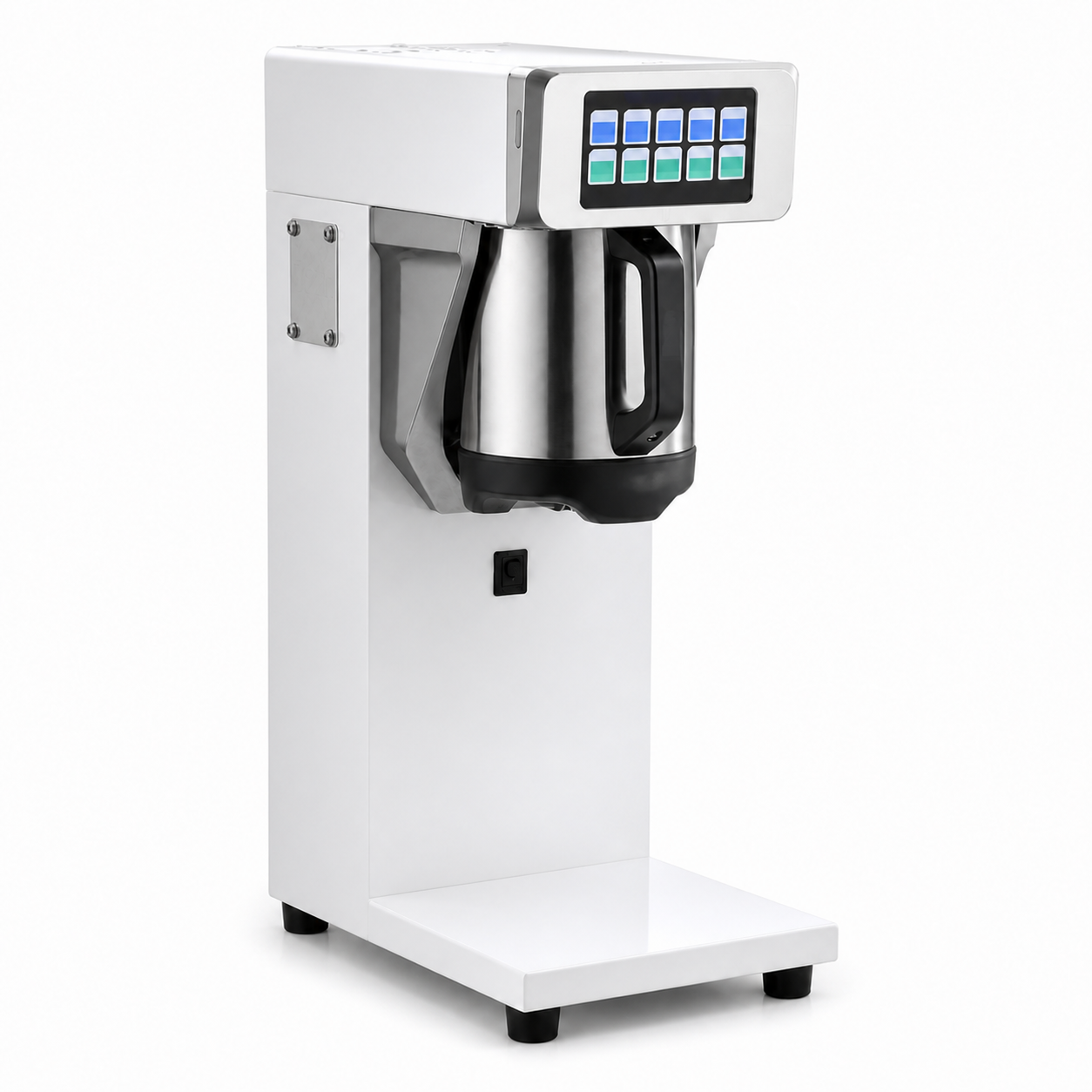

Wi-Fi Automatic Tea Brewing Machine
PH-SK300 is a Wi-Fi automatic tea brewing machine for commercial beverage stores.
It stores up to 20 recipes and automatically completes water filling, stirring, steeping, and tea dispensing. The 7-inch touchscreen and cloud management help chains synchronize menu settings across stores. Maximum brewing volume: 5,000 c.c.
Please confirm 220V power, stable 2.4 GHz Wi-Fi, a 1/4-inch RO water inlet, and water quality before ordering.
Turn every batch of tea into a repeatable store process
Water volume, temperature, steeping time, and stirring sequence can all be saved as clear brewing settings. When the menu changes, cloud management lets you update multiple stores without configuring each machine one by one.
From water filling and stirring to tea dispensing, every step follows the saved recipe
Save up to 20 tea recipes to simplify staff training and help every store follow the same brewing conditions.
Update tea menus without re-entering settings at every store
Adjust tea names, temperature, water volume, time, and stirring steps from the cloud. Ideal for beverage chains that need consistent settings across multiple stores.
Centralized setup
Manage tea names and complete brewing parameters.
Multi-store synchronization
Reduce machine-by-machine setup when launching new drinks or adjusting recipes.
Usage records
Review daily, monthly, and historical operating counts.
Instant heating, preheating, stirring and safety detection at a glance

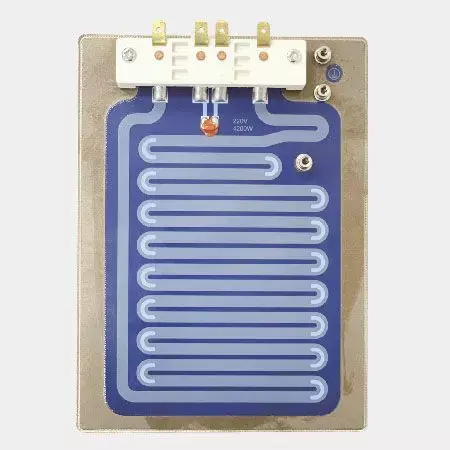

Instant-heating design
Heats water according to the saved brewing parameters so each tea recipe enters the cycle at its set temperature.

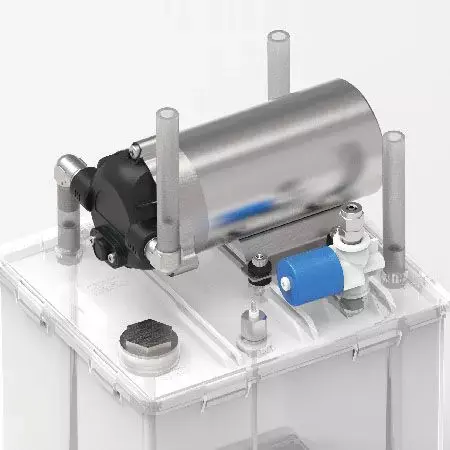

Preheating device
Prepares hot-water conditions for seasonal, recipe and consecutive-brewing needs. Actual cycle time still depends on water supply and settings.
Two-stage stirring and steeping
Set two stirring and steeping intervals; an unused stage can be set to 0 seconds.
Bucket safety detection
Includes a brewing-bucket position alert and receiving-bucket detection to reduce incorrect starts.

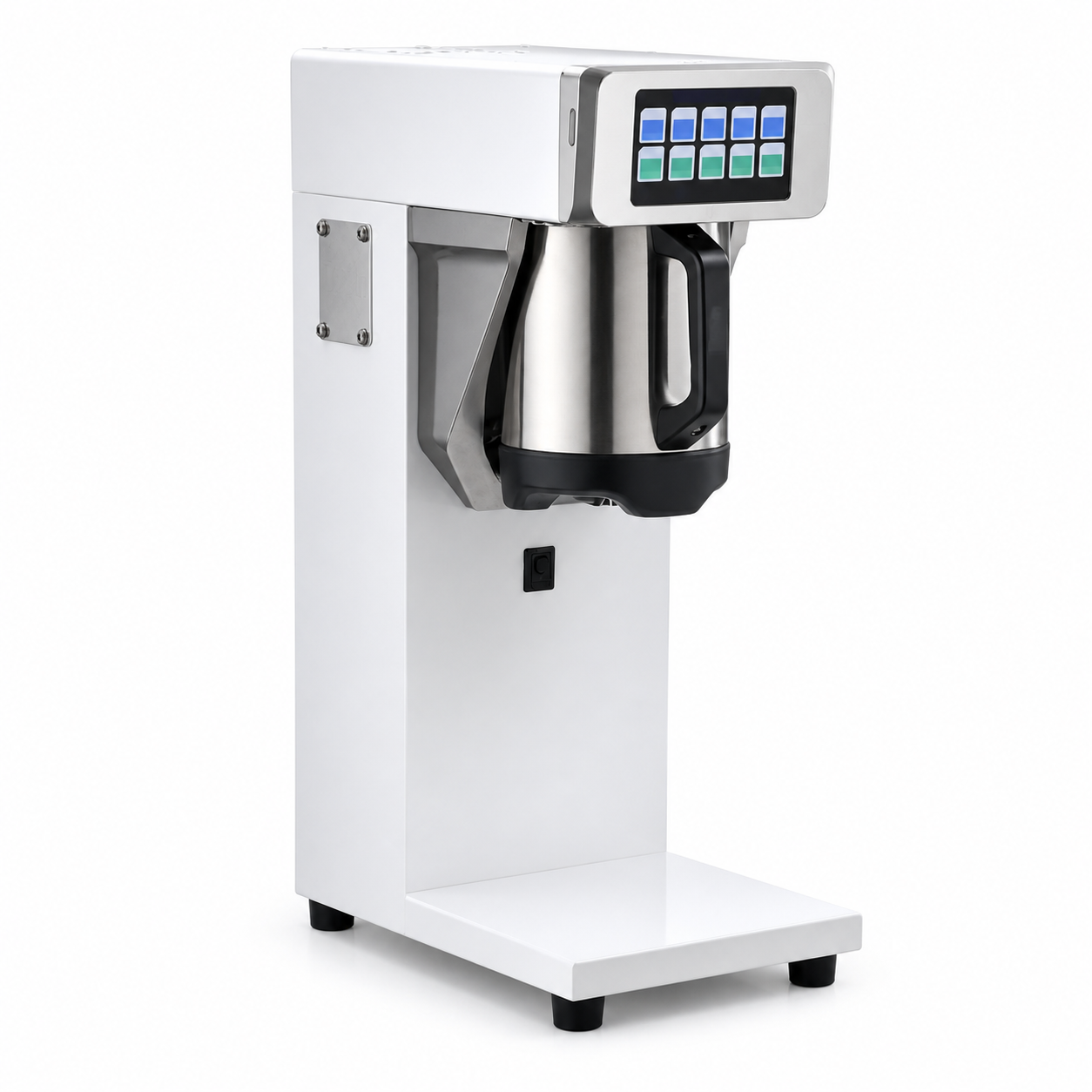

SUS 304 brewing bucket
The 5 L bucket, filter, drain mechanism and leak-resistant gasket can be removed for cleaning.

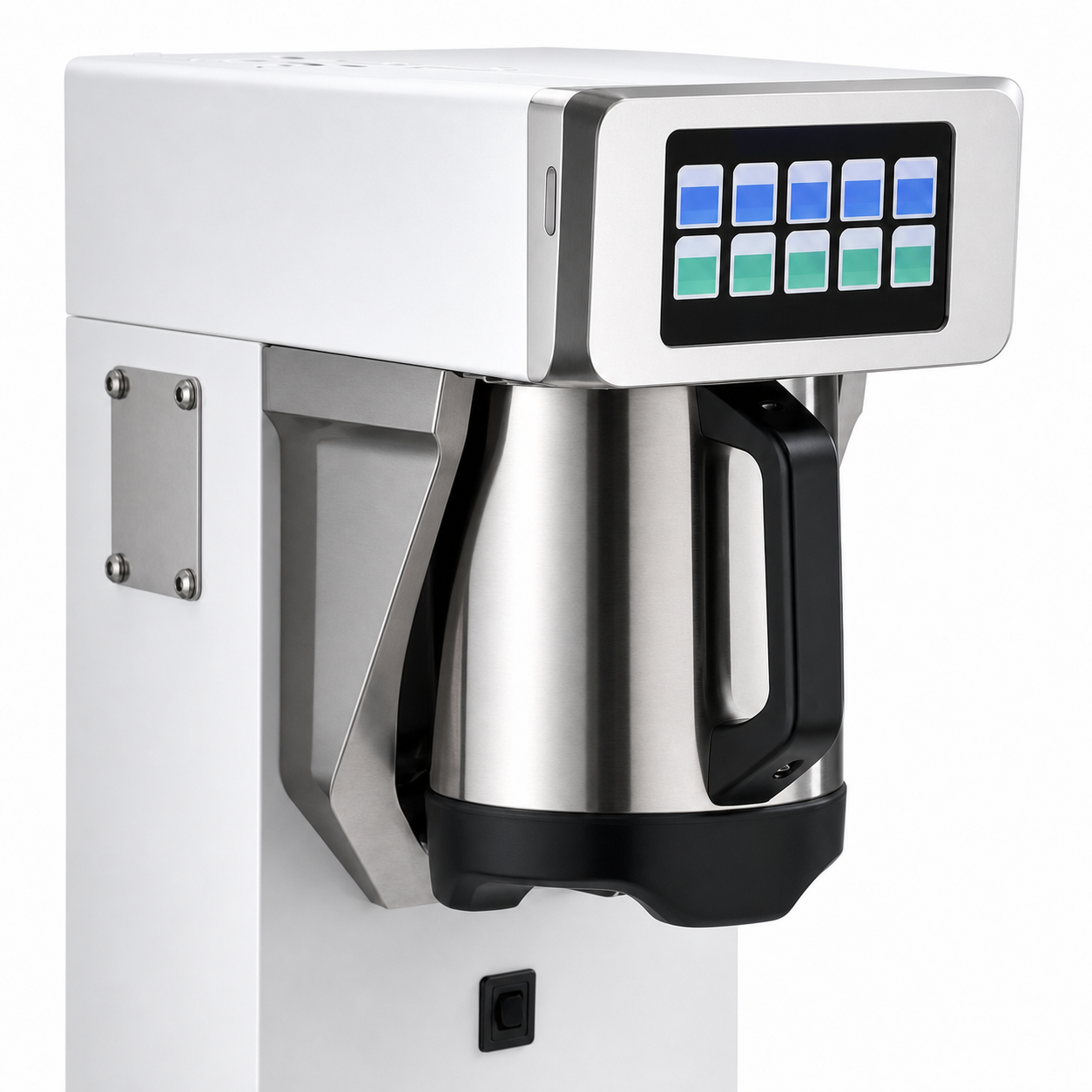

Touch control and automatic water inlet
The 7-inch screen shows recipe, temperature, time and water volume; water enters automatically through a 1/4-inch RO tube.
Wi-Fi model specifications
| Model | PH-SK300 |
| Power | 3,750W |
| Voltage | 220V／50-60Hz |
| Machine dimensions | 56 × 26 × 83 cm |
| Net weight / gross weight | 21 kg／26 kg |
| Carton dimensions | 64 × 38 × 96 cm |
| Reference dispensing time | 5,000 c.c. / 97°C / approx. 150 seconds |
| Brewing recipes | Up to 20 sets |
| Water volume setting | 100-5,000 c.c. |
| Steeping time | 1-3,000 seconds |
| Tea bucket | 5 L／SUS 304 |
| Water inlet requirements | 1/4-inch RO tube; inlet flow must exceed 500 c.c. per minute |
| Network requirement | Stable 2.4 GHz Wi-Fi |
| Safety mechanisms | Tea-bucket position alert + lower receiving-bucket detection |
Specifications may vary by production batch and installation conditions. Refer to the official quotation, machine nameplate, and installation sheet.
Confirm power, network, water inlet, and water quality before ordering
Power
220V single-phase, 50-60Hz. Use a dedicated circuit with proper grounding and leakage protection.
Network
Cloud management requires stable 2.4 GHz Wi-Fi.
Water inlet
1/4-inch RO tube; inlet flow must exceed 500 c.c. per minute. Filtered water is recommended.
Key checks before purchase
What types of stores is the PH-SK300 suitable for?
It is suitable for beverage stores and chains that need cloud-managed brewing recipes, synchronized multi-store tea menus, or less machine-by-machine setup.
How much tea can it brew at one time?
The maximum brewing volume is 5,000 c.c. Reference conditions are 5,000 c.c. at 97°C in approximately 150 seconds. Actual time varies with inlet flow, preheating, and recipe settings.
Can it connect directly to tap water?
Filtered water through a 1/4-inch RO tube is recommended. Water quality and filter maintenance affect scale buildup and equipment condition.
What power and network are required for installation?
The machine uses 220V single-phase power at 50-60Hz and requires a dedicated circuit, proper grounding, and leakage protection. Cloud management requires stable 2.4 GHz Wi-Fi. Confirm breaker capacity against the machine nameplate and installation sheet.
What certifications are associated with the PH-SK300?
Available product information lists NSF/ANSI 4 and CE certifications. Certificate downloads are not currently provided on this website. If your project requires certificates or confirmation of the applicable model and voltage range, contact Phoenixes for the available official documents.
How are warranty, installation, and service terms confirmed?
Actual warranty period, on-site installation, spare parts, cloud account, and service terms are governed by the official Phoenixes quotation and service terms.
Tell us about your store so we can confirm the right cloud setup
Please provide the number of stores, daily tea volume, menu update method, and the site's 220V power, 2.4 GHz Wi-Fi, water inlet, and water quality conditions.
