Production Line Sealer
Phoenixes offers Production Line Sealer tailored for large-scale food manufacturers worldwide.
These high-speed packaging lines are customizable and handle a wide variety of containers—cups, bowls, trays, and cans—with precision.
Optional functions (MAP gas flushing, vacuum, liquid filling, date printing) ensure leak-proof, fresh-keeping packaging for frozen foods, ready meals, salads, fresh meat and more.
Engineered for seamless integration with existing production lines, Phoenixes’ sealers maximize efficiency and automation, reducing labor while ensuring food safety.
Explore the models below or CONTACT US for tailored sealing solutions.

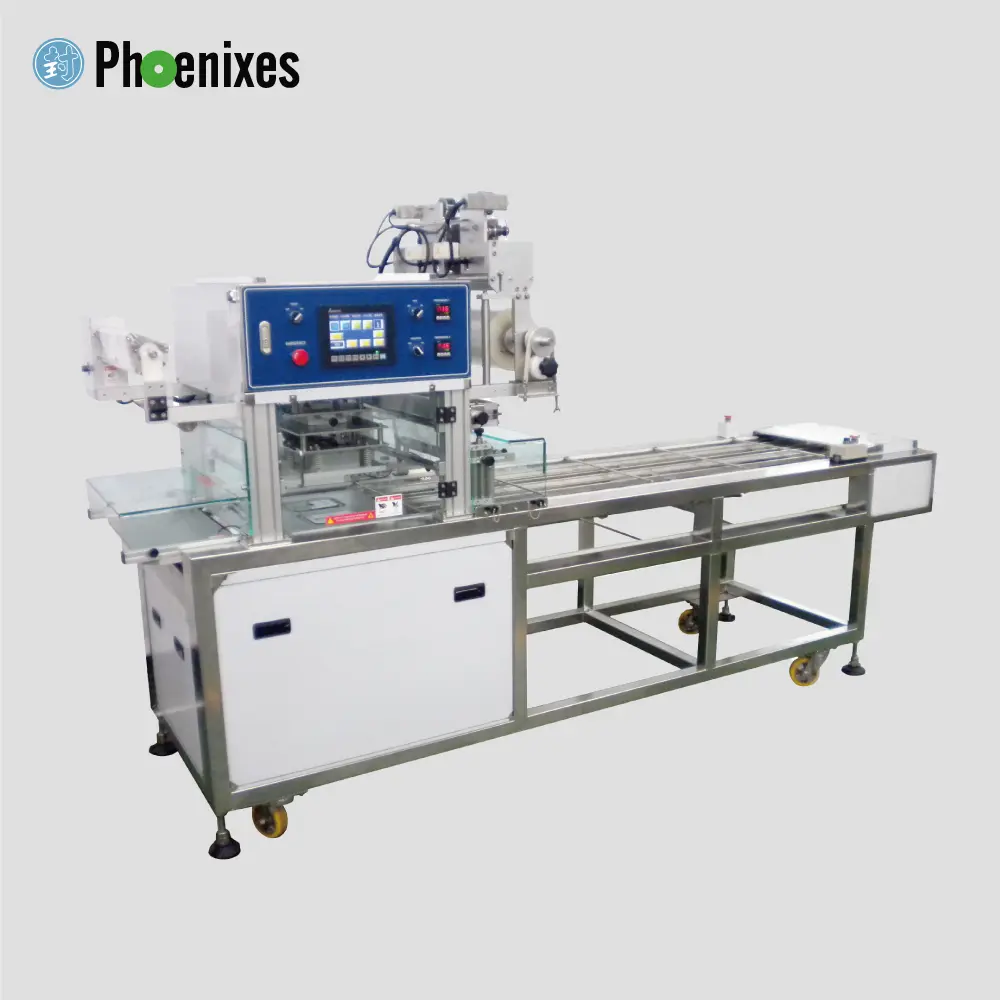

Continuous Automatic MAP Tray Sealing Line
PH-55 is a continuous push-rod automatic sealing line for meal boxes, fresh food, meat, seafood, frozen food and other food containers. Interchangeable molds support three configurations: MAP gas flushing and sealing, vacuum plus gas flushing and sealing, or vacuum skin packaging. The standard maximum sealing area is 400 × 320 mm, with custom sizes available. The line uses PLC touch-screen control, an IP65 stainless-steel structure and supports up to four sealing lanes.
- Three packaging modes on one configurable platform.
- CE safety and ISO 9001 quality baseline.
- Compatible with printed or unprinted plastic, paper and aluminum sealing films.
- Options include container denesting, filling, date coding, precut film, UV sterilization and capping.
For selection, provide container samples or drawings, material, food product, sealing film, required packaging mode, target hourly output and the upstream/downstream equipment to be connected. Final performance and configuration require sample and line review.

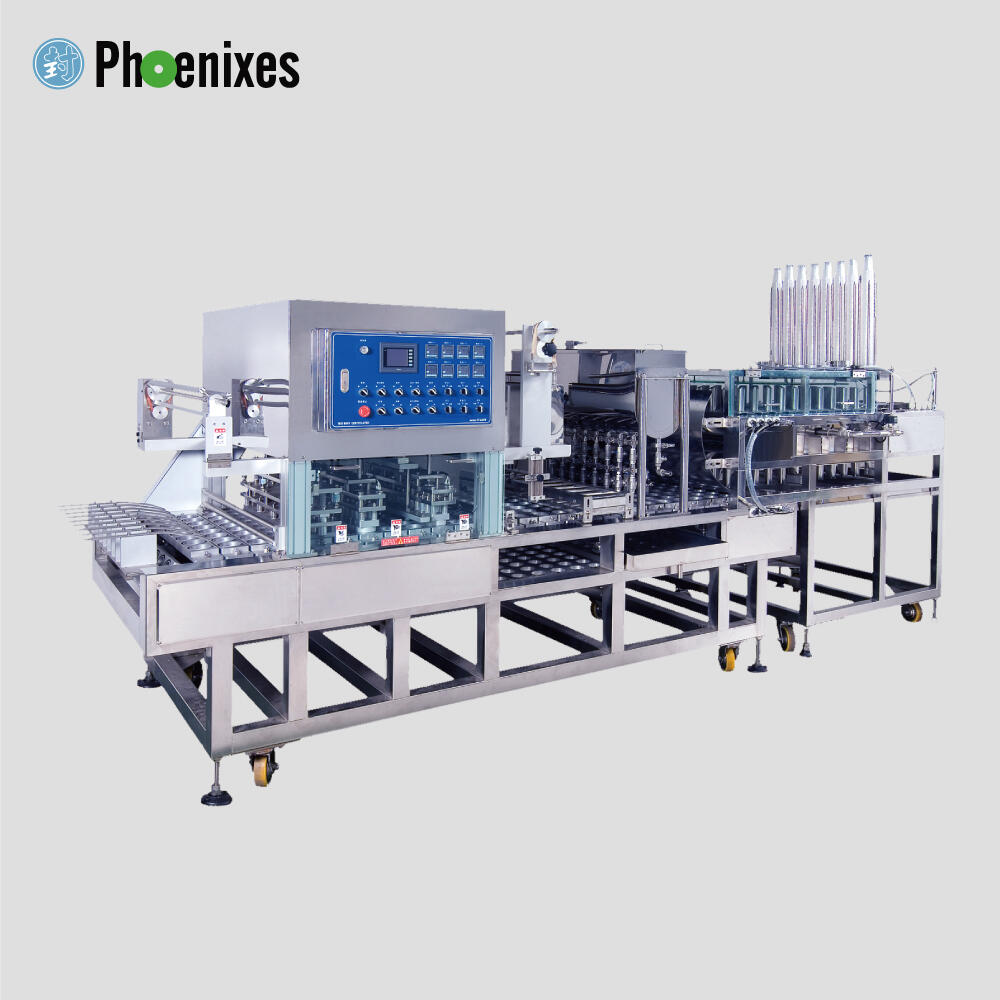

Automatic Conveyor Container Sealing Line
PH-22/66 is a configurable automatic conveyor line for filling and sealing cups, tubs, meal boxes and other food containers. Standard models run at up to 15 cut-and-seal cycles per minute. With multi-lane molds, reference output ranges from 900 to 7,200 containers per hour, depending on the selected model, container and line layout.
- Seven listed PH-22 and PH-66 configurations for different container sizes and lane counts.
- Three-phase 220/380/415/480 V; stainless-steel frame, IP65 protection and PLC touch-screen control.
- Options include container denesting, filling, date coding, MAP gas flushing, precut film, UV, mold washing and capping.
- CE and ISO 9001 manufacturing baseline.
For a reliable proposal, provide container samples or drawings, material, food product, target hourly output, sealing film and the upstream/downstream equipment to be connected.

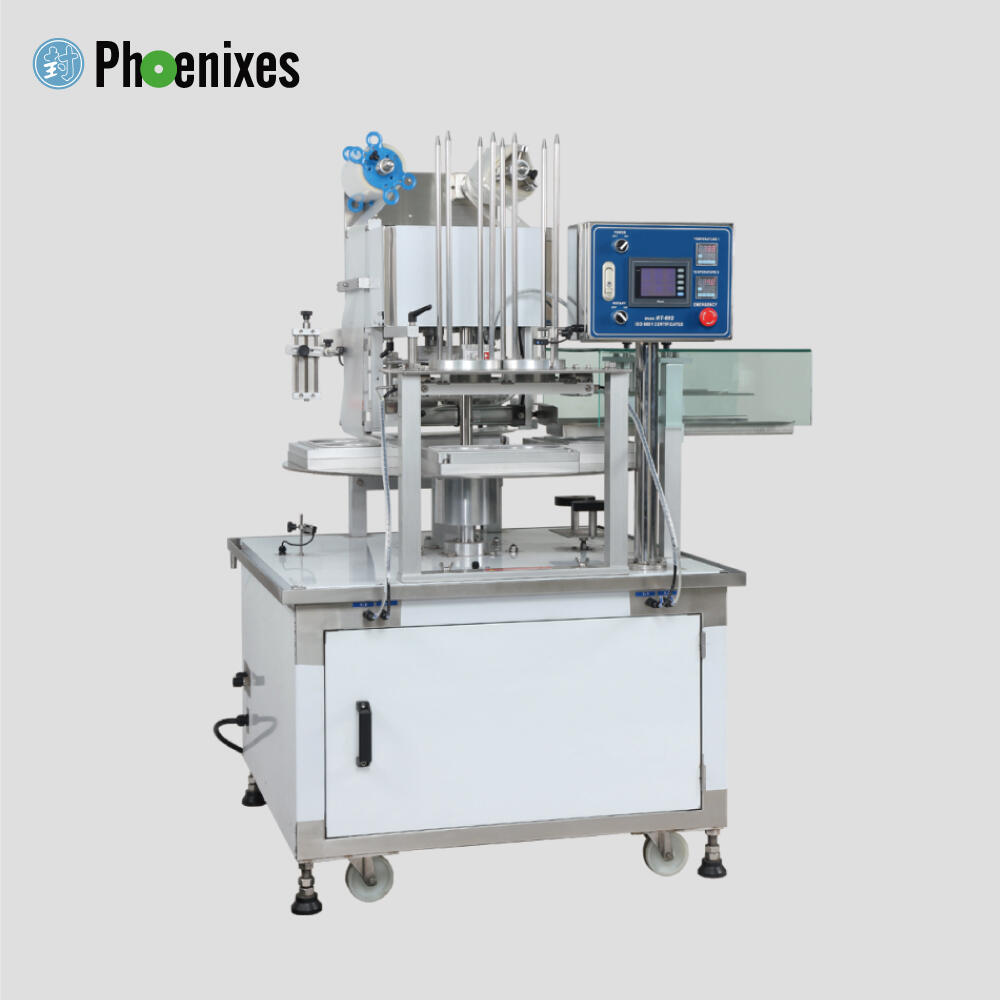

Automatic Sealing Machine | Rotary Type
Compact and fully automatic, the PH-80 Rotary Sealer delivers efficiency and flexibility with versatile molds, MAP technology, liquid filling, date printing, and tailored tooling to meet your needs.
Features
- PLC controller.
- Stainless steel exterior.
- Driven by external compressor (not included).
- Interchangeable mold.
- Customized molding.
- Temperature and error shown on display.
- Userfriendly parameter and easy to operate.
- Certified by CE regulations.
