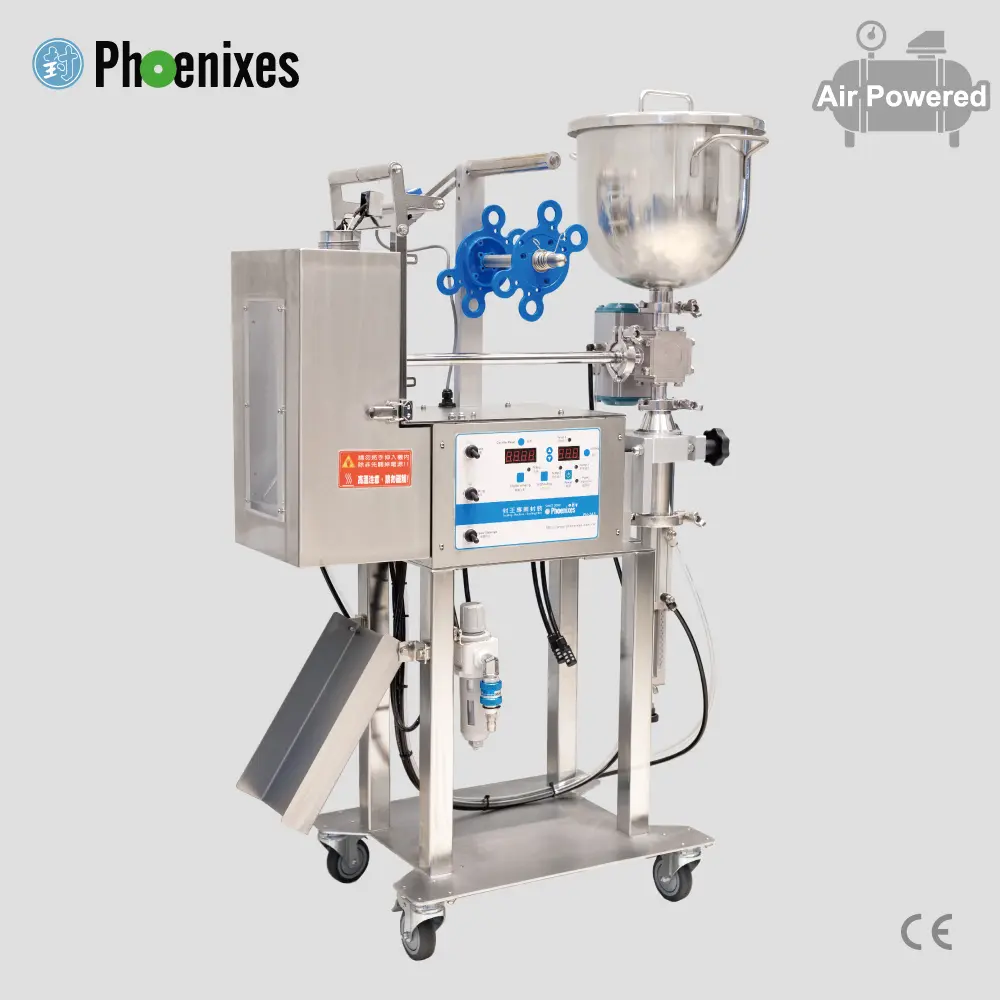

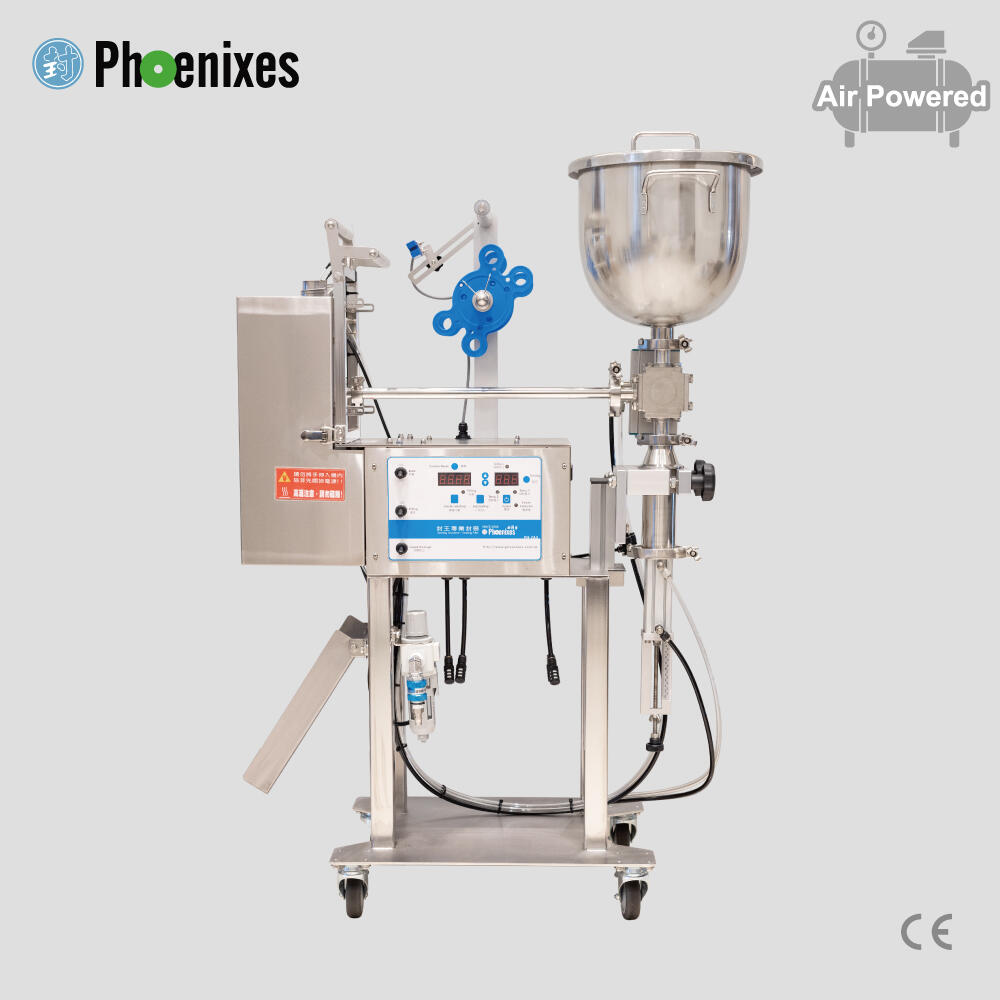

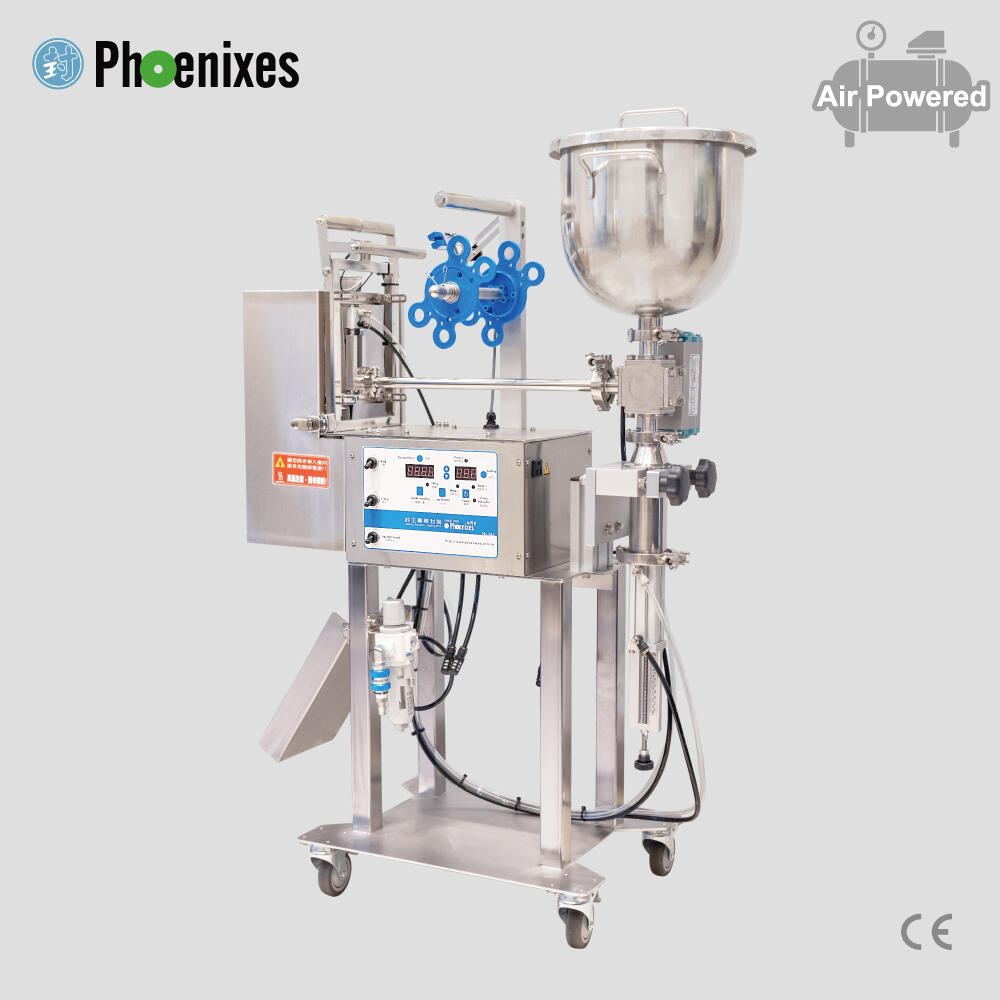

Automatic Sauce and Liquid Sachet Packaging Machine
PH-2A3 is a floor-standing automatic sachet packaging machine for sauces and liquids. It integrates piston dosing, film forming, three-side heat sealing and cutting in one cycle. Filling range is 10–200 c.c. with ±3% accuracy; output is up to 1,200 packs/hour at 20 c.c. A 12 L hopper, LED controls, count display, temperature control and fault detection support routine production. An external air compressor is required. High-viscosity, settling or fine-particle products should be confirmed by sample testing.

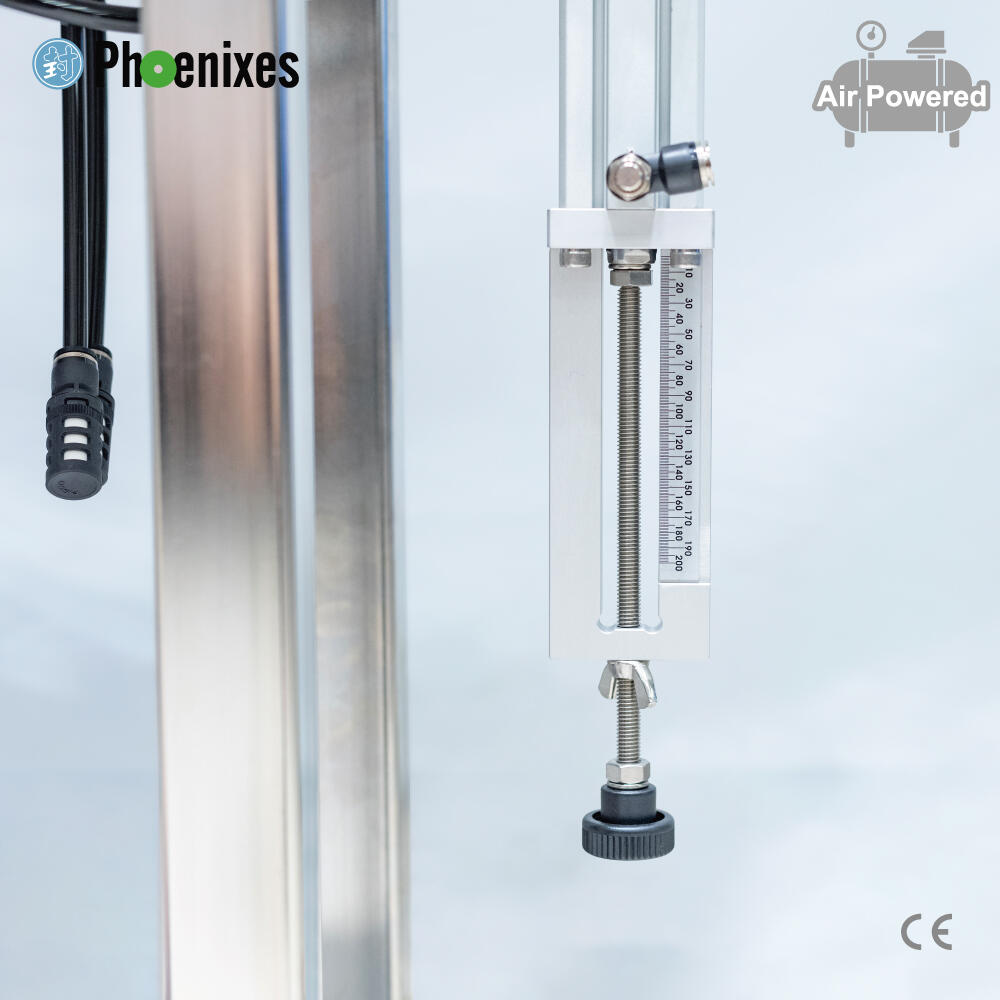

- 10–200 c.c. — Filling range
- ±3% — Filling accuracy
- 1,200 packs/hour — At 20 c.c.
- 12 L — Hopper capacity
Integrated sachet packaging

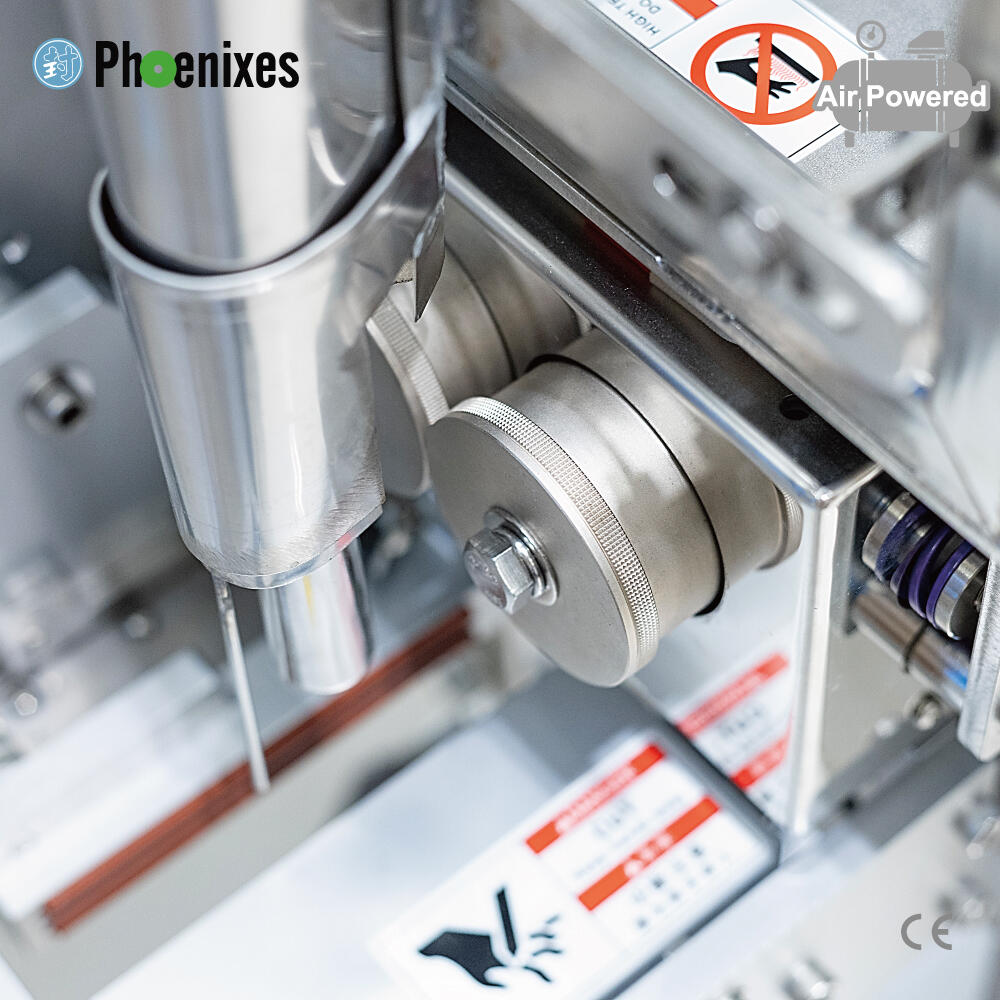

Controlled dosing, three-side sealing and cutting in one machine

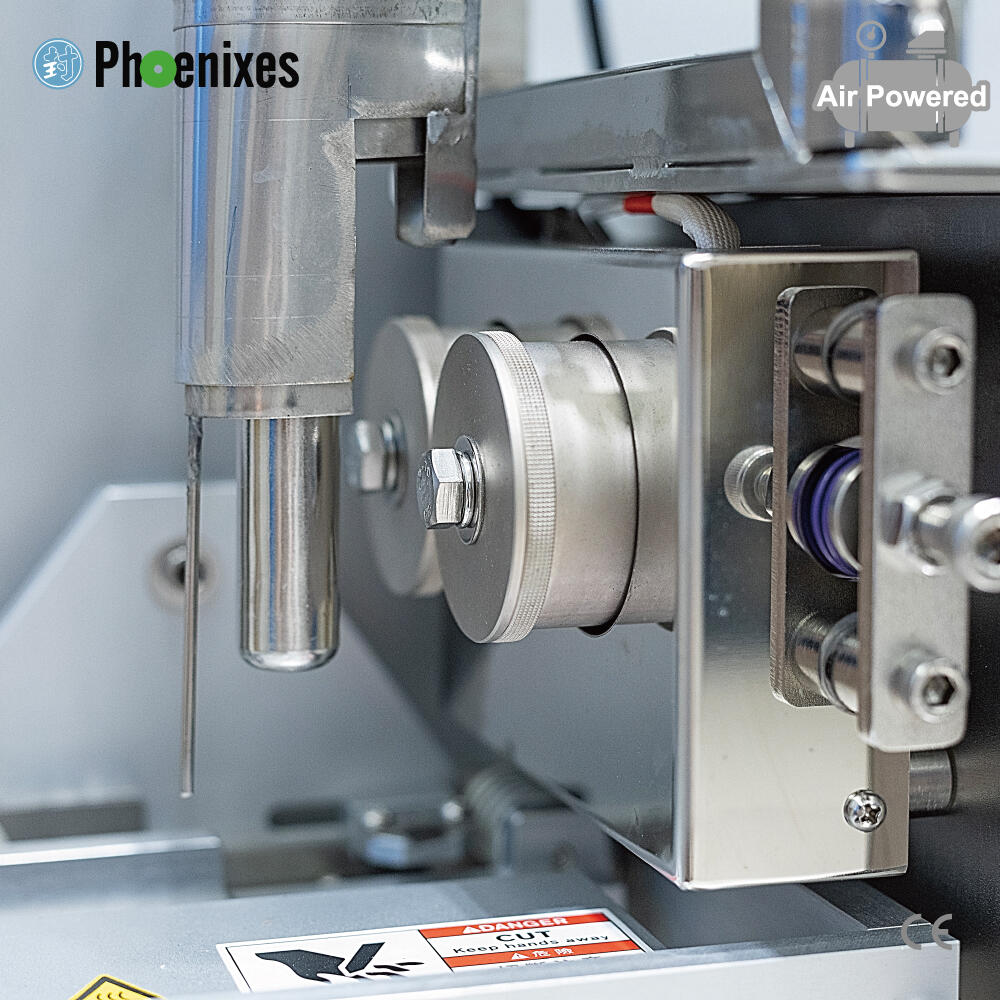

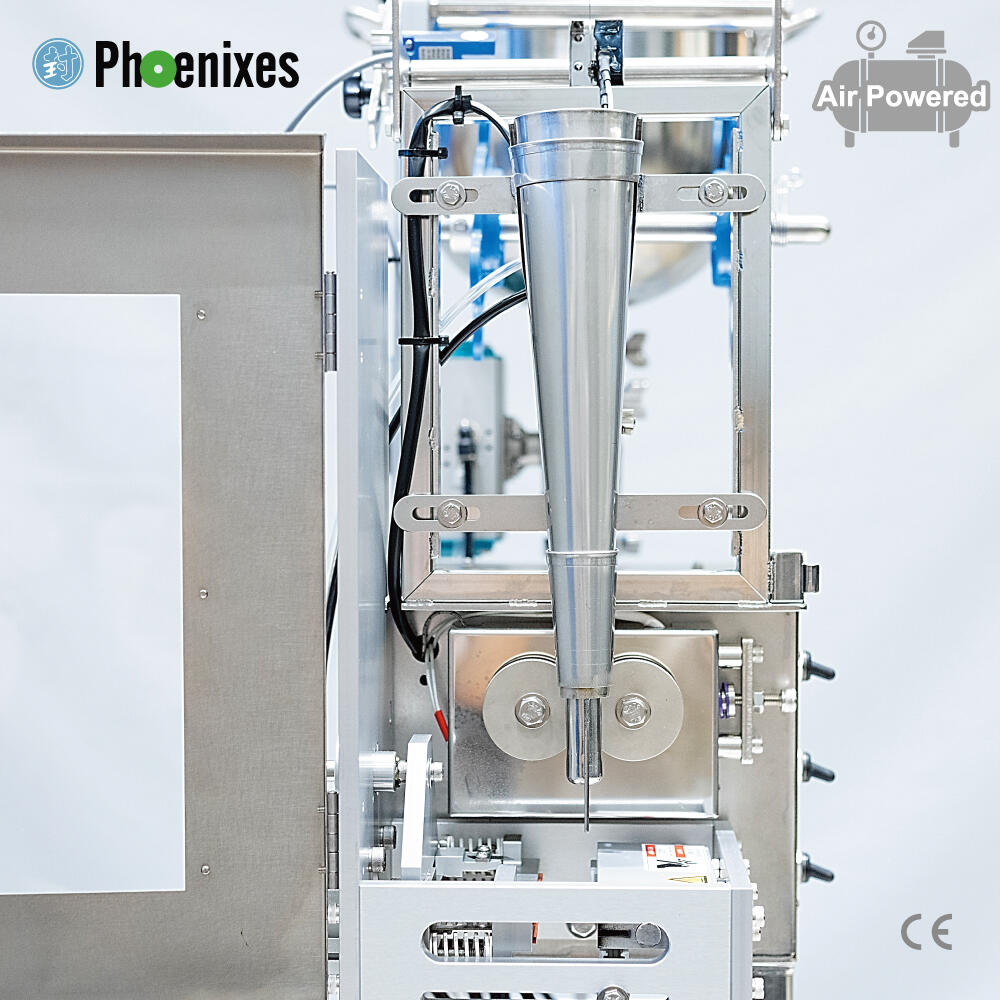

Designed for food processors that need repeatable small-format sauce and liquid packaging, PH-2A3 combines an adjustable piston filler with automatic film forming, sealing and cutting. The #430 stainless-steel machine body supports routine cleaning and factory use.
Production and control capabilities
- LED panel with filling-volume setting, temperature control, pack counter and fault codes.
- Three-side seal format; bag length adjustable from 30 to 200 mm.
- Custom printed film and control-panel customization can be discussed; date printer is supported.
- CE certified. External air compressor is required for pneumatic operation.
Recommended applications

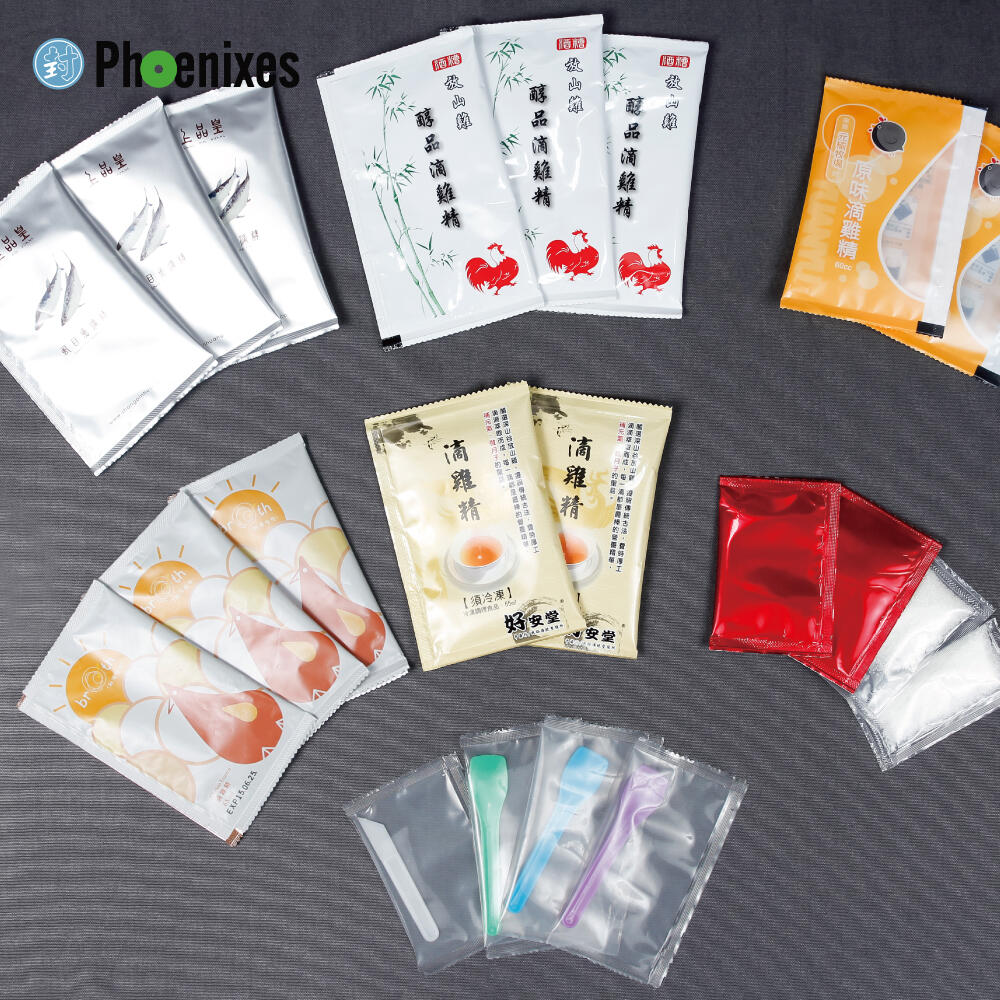

- Smooth sauces and condiments, such as ketchup, mayonnaise, mustard and salad dressing.
- Syrups, seasoning liquids, edible oils and other flowable food products.
- Medium- to high-viscosity sauces when the formulation and target volume are confirmed by testing.
- Products that settle, separate or contain fine particles require sample testing; large particles are not a standard recommendation.
See the filling and packaging cycle

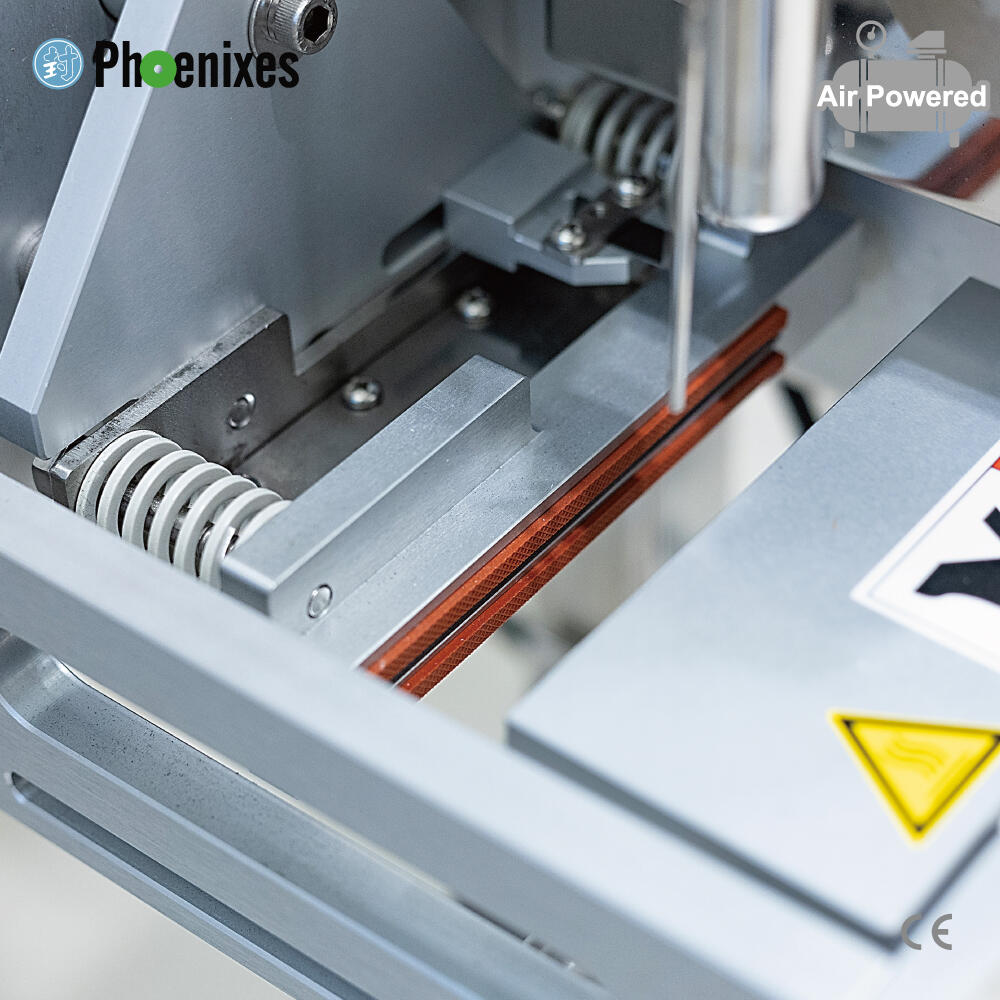

The operating video shows film feeding, metered filling, heat sealing and cutting. Final speed depends on fill volume, product characteristics, film and sealing conditions.
Optional configurations
- Agitator for products prone to separation or settling
- Pressing plate for selected viscous products
- Double-wall hopper for temperature-sensitive processes
- Automatic feeding system for longer production runs
- Date printer and customized film or control panel
Technical specifications
Values below are the verified PH-2A3 page baseline. Actual output varies with product, fill volume, film and process settings.
| Model | PH-2A3 |
|---|---|
| Machine dimensions | 800 × 450 × 1,200 mm |
| Power supply / power | 110/220 V, 800 W |
| Output | Up to 1,200 packs/hour at 20 c.c. |
| Hopper capacity | 12 L |
| Filling range | 10–200 c.c. |
| Filling accuracy | ±3% |
| Bag length | 30–200 mm |
| Net weight | 56 kg |
| Seal format | Three-side seal |
| Compressed air | External air compressor required |
| Machine body | #430 stainless steel |
| Control functions | LED display, temperature control, counter and fault detection/codes |
| Certification | CE |
Selection and production FAQ
Does PH-2A3 require an air compressor?
Yes. Pneumatic operation requires an external air compressor. Confirm available air conditions before ordering.
Can it fill thick sauces or products with particles?
Compatibility depends on viscosity, flow, settling and particle size. Send representative samples for testing; large particles are not a standard application.
Is 1,200 packs/hour guaranteed for every product?
No. It is a reference output at 20 c.c. Actual speed varies with dose, product, film, bag length and sealing conditions.
Which packaging material can be used?
Film and aluminum-foil-based structures can be evaluated, but seal-layer compatibility and thickness must be confirmed through sealing tests.
Can production information be printed?
A date printer is supported. Provide print content, location and packaging material when discussing the configuration.
What should be supplied for evaluation?
Provide product samples, target fill, pouch dimensions, film, desired output, power and compressed-air conditions.
Why work with Phoenixes
Phoenixes provides pre-sales application review, sample-testing support, configuration consultation and after-sales service. With more than 25 years of packaging-equipment experience and exports to over 50 countries, we also welcome distributor and project-integration inquiries.
Contact [email protected] for sample testing and configuration review.
